LED Headlight Bulbs: A Step-By-Step Guide in 2025

LED headlight bulbs have transformed automotive lighting with superior brightness, energy efficiency, and modern style over halogen and HID options. Whether upgrading for better visibility, safety, or a sleek look, understanding LED technology is key.

Whether you’re buying LED headlight bulbs for personal use or just starting out in the automotive lighting business, this guide is packed with essential knowledge to help you get a strong understanding of automotive lighting. Let’s get started!

LED HEADLIGHT BASIC UNDERSTANDING

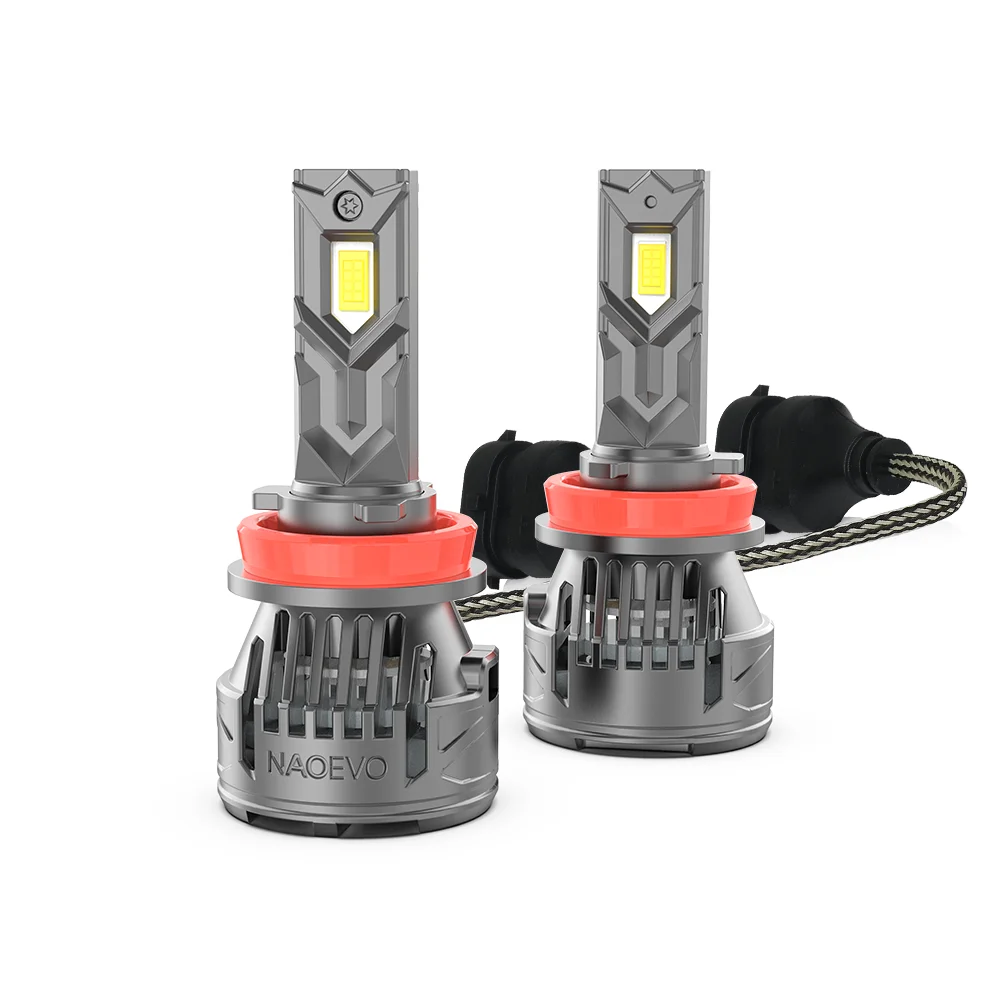

What is LED Headlight Bulb?

LED headlight bulb is a modern type of automotive lighting that uses Light Emitting Diodes (LEDs) to produce bright, efficient light. Unlike traditional halogen or HID bulbs that rely on burning filaments or gas reactions, LEDs create light through an electrical process called electroluminescence.

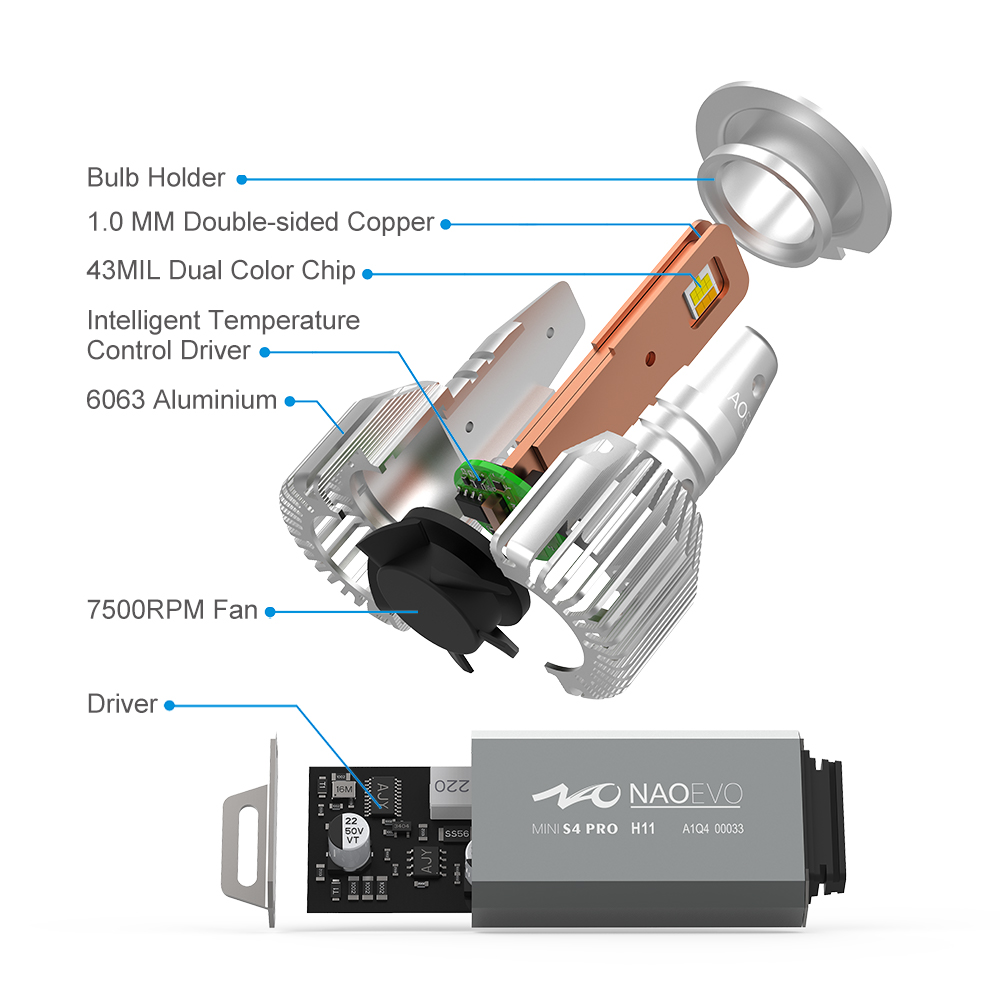

Main Components of LED Headlight Bulbs

There four main components of LED headlight bulbs, which are:

📌LED Chip:

The LED chip is the core component of the LED headlight bulb. Common chip types like COB, CSP, ZES, and Flip Chip each deliver different performance in terms of brightness, focus, and stability.

To explore these popular chip types in more detail, check out this guide on: 5 common chip types used in LED headlight bulbs, which is best?

📌A PCB:

The PCB (Printed Circuit Board) in an LED headlight bulb is the base that holds and connects the LED chips and other electronic components. It’s responsible for both electrical conduction and heat management.

📌Driver:

The driver converts AC from the alternator into DC to power the LEDs and regulates voltage and current to prevent fluctuations that could impact the LED’s temperature and performance.

LED headlights feature either external or integrated driver designs, with each configuration delivering different performance outcomes.

📌A Cooling Mechanism:

The cooling methods used in LED headlight bulbs can be classified as active or passive cooling. Active cooling often use fan and liquid copper tubes. Passive cooling only use a heat sink helps to conduct heat from the chip.

LED HEADLIGHT COMPARISON GUIDE

LED vs. Halogen Headlight, What’s The Difference?

LED headlight outperform halogen with brighter illumination, better energy savings, and far longer-lasting performance. Moreover, LED headlight produces a cooler, whiter light that enhances nighttime visibility and adds a modern aesthetic to your vehicle. Halogen bulbs, however, are more affordable upfront, but they consume more power and have a shorter lifespan.

👉Deep Read: Halogen VS. LED Headlights: Which Is The Better?

Features	LED Bulb	Halogen Bulb
Working Principle	LED chips emit light when powered	Uses a tungsten filament heated by electricity to produce light
Energy Use	20–30W	55W
Power Consumption	Low	High
Color Temperature	5000K–6500K White	3000K–4000K Yellow
Lifespan	20,000 – 50,000 hours	500 – 1,000 hours
Cost	Higher initial cost, long-term savings	Lower upfront cost, frequent replacements
Warm-Up Time	No	1s
Installation	Easy	Easy

LED vs. HID Headlight, What’s The Difference?

LED and HID headlights are both brighter and more efficient than halogen, but they work differently.

LED headlights use semiconductor chips to produce full light instantly, however, HID bulbs create light by igniting gas inside a bulb, offering strong brightness but requiring a few seconds to reach full output.

Besides, most LED headlight bulbs feature plug-n-play design, while HID bulbs may require ballast systems and destruction installation.

👉Deep Read: LED vs HID Headlight Bulbs: Who is The Winner?

Features	LED Bulb	HID Bulb
Working Principle	Semiconductor	Xenon Gas
Brightness	Very bright with focused beam	Extremely bright, good for wide-area coverage
Power Consumption	Low	Moderate to high
Color Temperature	5000K–6500K White	4300K–6000K (white to bluish-white)
Lifespan	20,000 – 50,000 hours	2,000 – 3,000 hours
Cost	Higher initial cost, long-term savings	Mid-range cost, with ballast included
Warm-Up Time	No	1s-2s
Installation	Easy	Requires ballast and sometimes more complex wiring

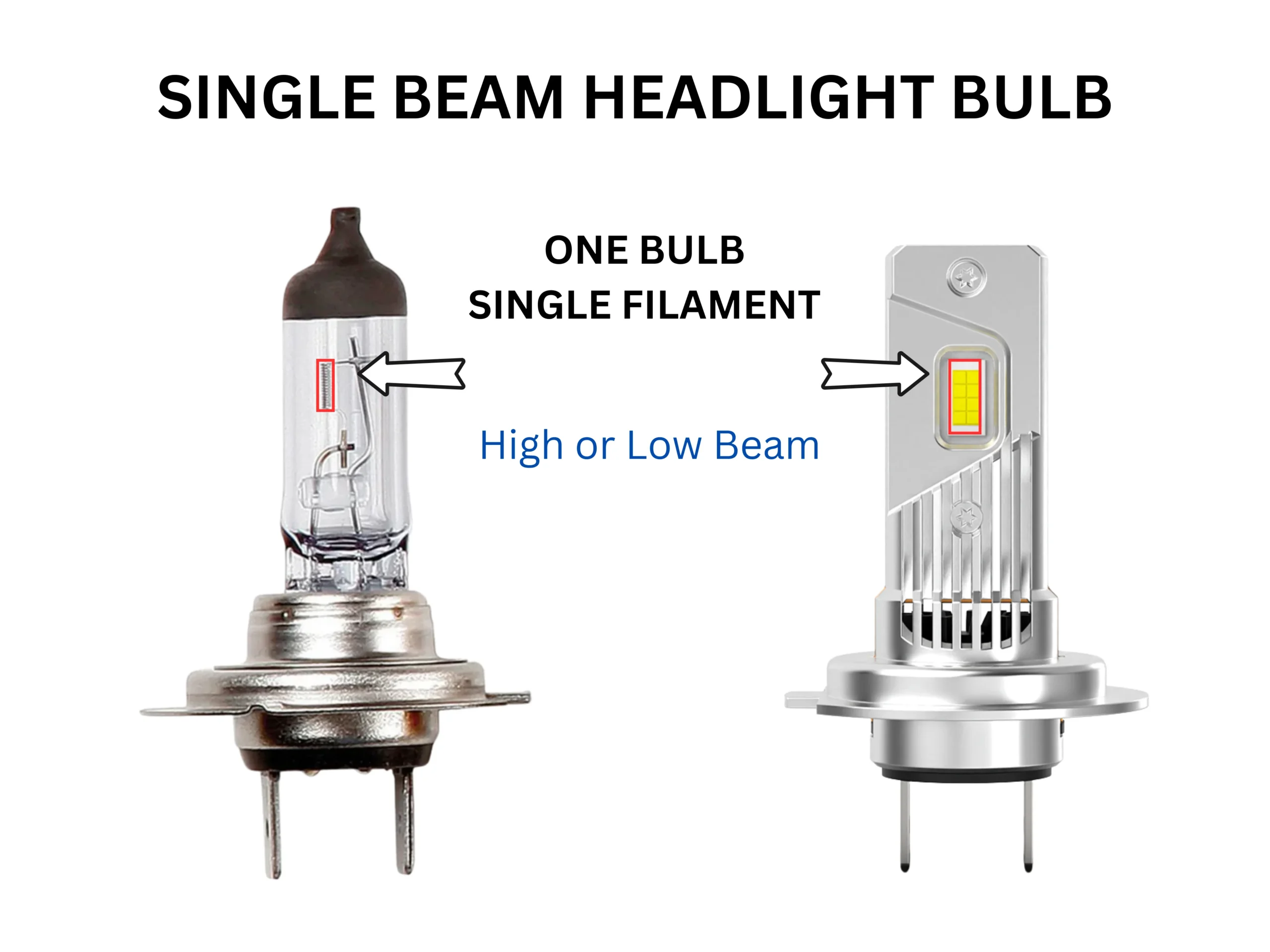

Single Beam vs. Dual Beam: What’s The Difference?

A single beam LED bulb can only produce either low beam or high beam such as H1, H7, H11, 9005, 9006, so vehicles using this type will require two separate bulbs for each function.

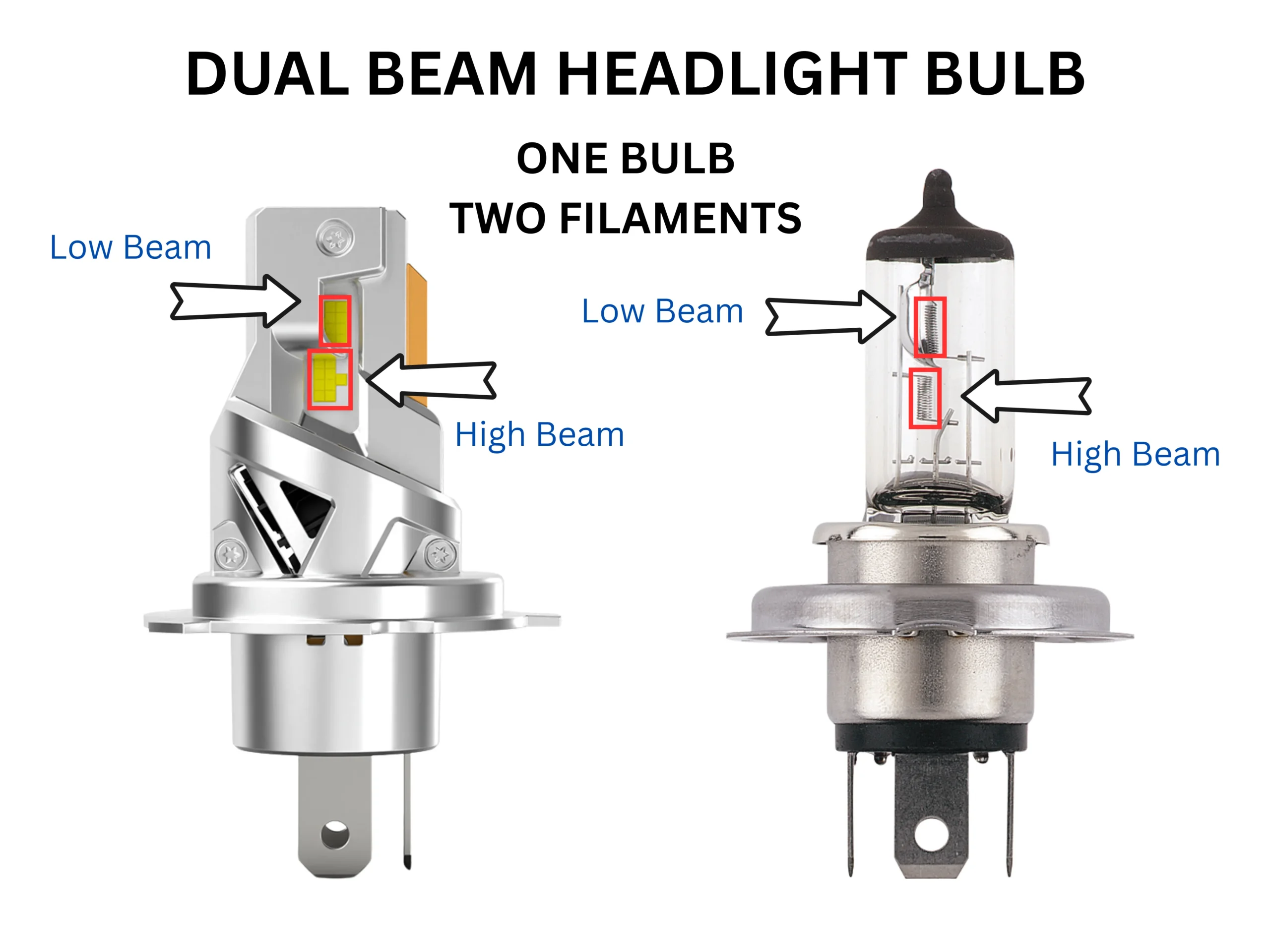

In contrast, a dual beam LED bulb such as H4, 9004, 9007, H13, 9008, combines both high and low beam in one unit, and is used in headlight housings that support both functions in a single socket.

Choosing the correct type depends entirely on your vehicle’s original headlight setup. Installing the wrong type may lead to poor visibility or improper lighting performance.

👉Deep Read: Single beam vs dual beam, what’s the key difference.

LED HEADLIGHT LEGALITY & RETROFITTING

Is It Legal To Use LED Headlight Bulb In Car?

In most cases, if your vehicle comes with factory-installed LED headlight bulbs, they are legal for road use.

However, using aftermarket LED headlight bulbs can be illegal if they lack proper certifications like DOT, ECE, or SAE . Uncertified LED headlight bulbs may produce scattered or glaring beams, which can blind oncoming drivers and compromise road safety.

If you’re going to replace you halogen with LED bulb, make sure they are complied with these common regulations:

📌Beam Pattern:

Most regions require correct alignment by law. The NHTSA also supports Adaptive Driving Beam (ADB) systems, which automatically adjust headlights to enhance visibility and reduce glare by creating shaded zones.

📌Brightness:

Most countries limit headlight output to 1500–2000 lumens, with ECE regulations setting 900–2000 lumens based on headlight class, vehicle type, and driving conditions.

📌Color Temperature:

Regulations typically require a color temperature of 5000K–6000K to ensure safe, non-distracting light and prevent harsh blue or xenon glare.

👉Read More: Are LED Headlight Bulb Legal To Use On Road?

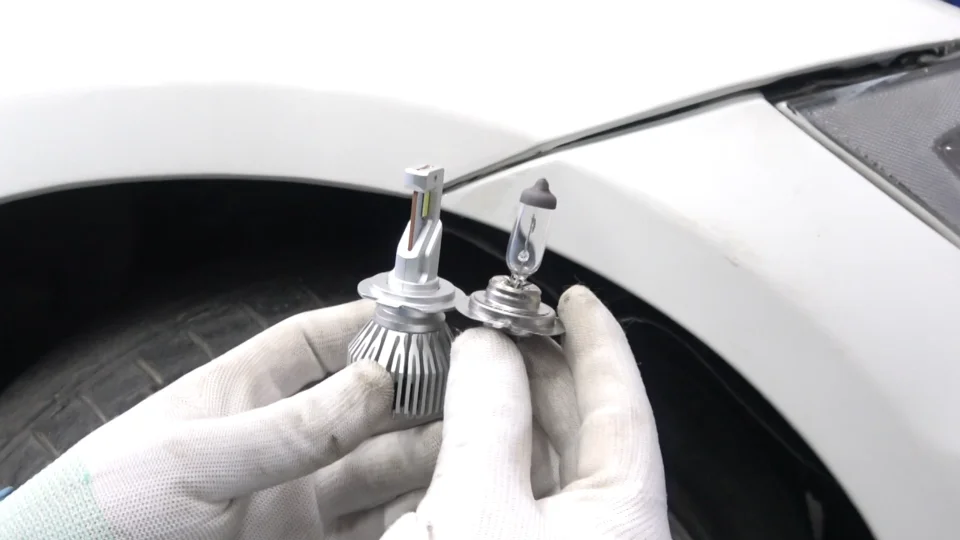

Can I Convert Original Halogen With LED Headlight Bulb?

If you’re tired of the dim light from your halogen bulbs, switching to brighter LED headlight bulbs can be a great upgrade. But before making the change, you might be wondering: Can I directly replace my halogen bulbs with LED headlight bulbs?

The answer is: YES. Converting your original halogen headlights to LED bulbs has been a popular upgrade among drivers today. Most LED headlight bulbs are designed to be plug-and-play, meaning they fit directly into your existing halogen housing without the need for major modifications.

However, to ensure the best results, it’s important to choose high-quality LED bulbs that match your vehicle’s socket type and are designed for reflector or projector housings.

👉Deep Read: Can I Replace Halogen With LED Headlight | Full Explained

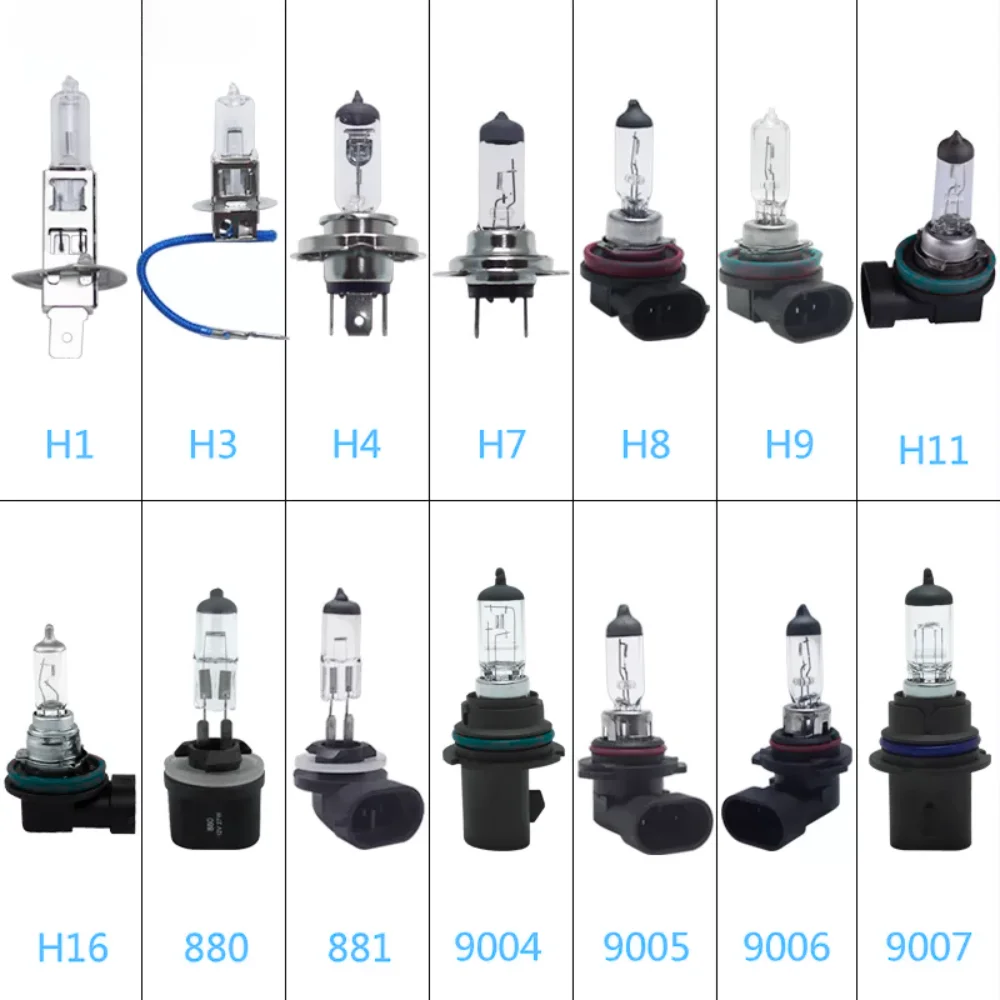

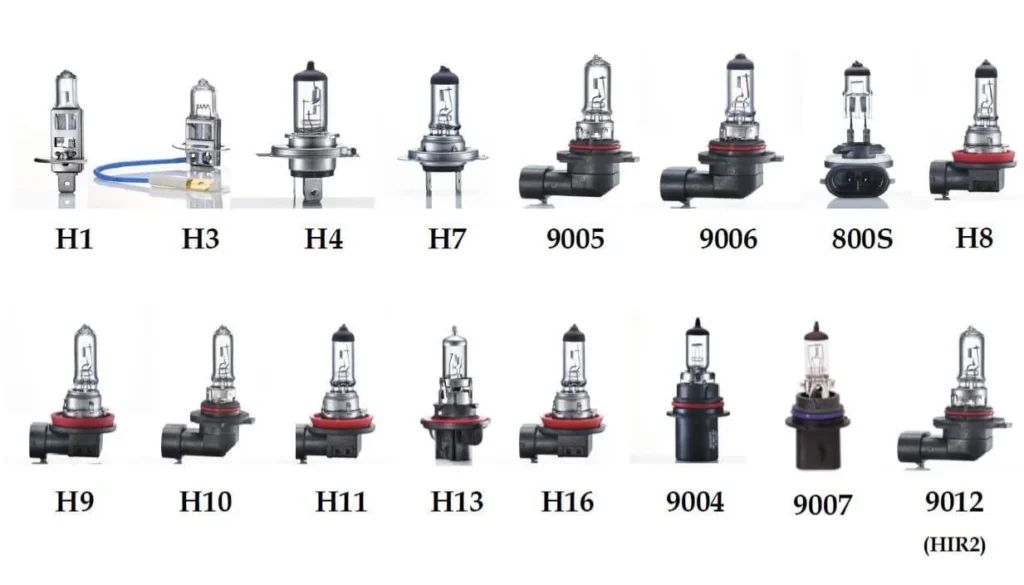

How to Identify Headlight Bulb Socket?

Car headlight bulbs come in various socket types like H4, H7, H11, 9005, 9006, and 9012—each with different shapes and functions, and they aren’t interchangeable (except in rare cases).

For example, if your car uses an original H4 halogen bulb, you’ll need an H4 LED headlight bulb as a replacement. The correct LED bulb type depends entirely on your vehicle’s original headlight socket. You can check your car’s user manual or use an online bulb finder tool to identify the correct bulb type.

Not sure how to identify your headlight bulb socket? Read this guide: H4, H7, H11, 9005 | How to Identify Headlight Bulb Socket?

LED HEADLIGHT BUYING GUIDES

How to Choose Quality LED Headlight Bulbs?

Choosing a good LED headlight bulb is key to ensuring safety, performance, and longevity. With so many options on the market, you should pay attention to factors like stable output, beam pattern, color temperature, heat dissipation, and installation. To make your decision easier, check out our guide on what makes a good LED headlight bulbs for detailed tips and expert advice.

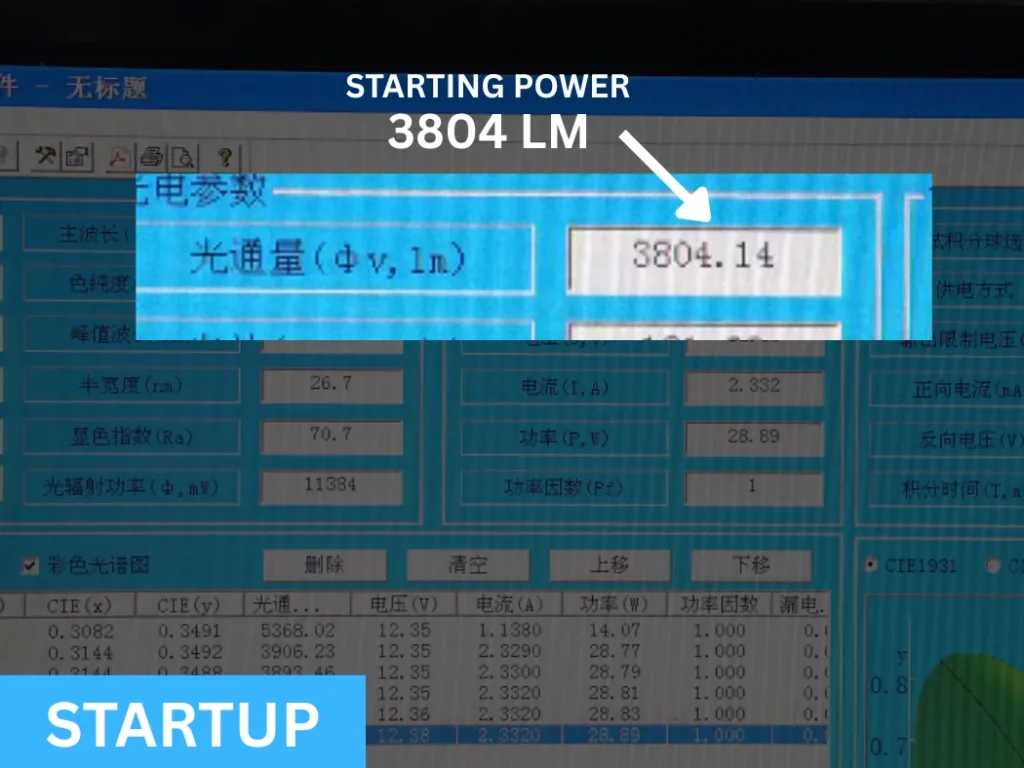

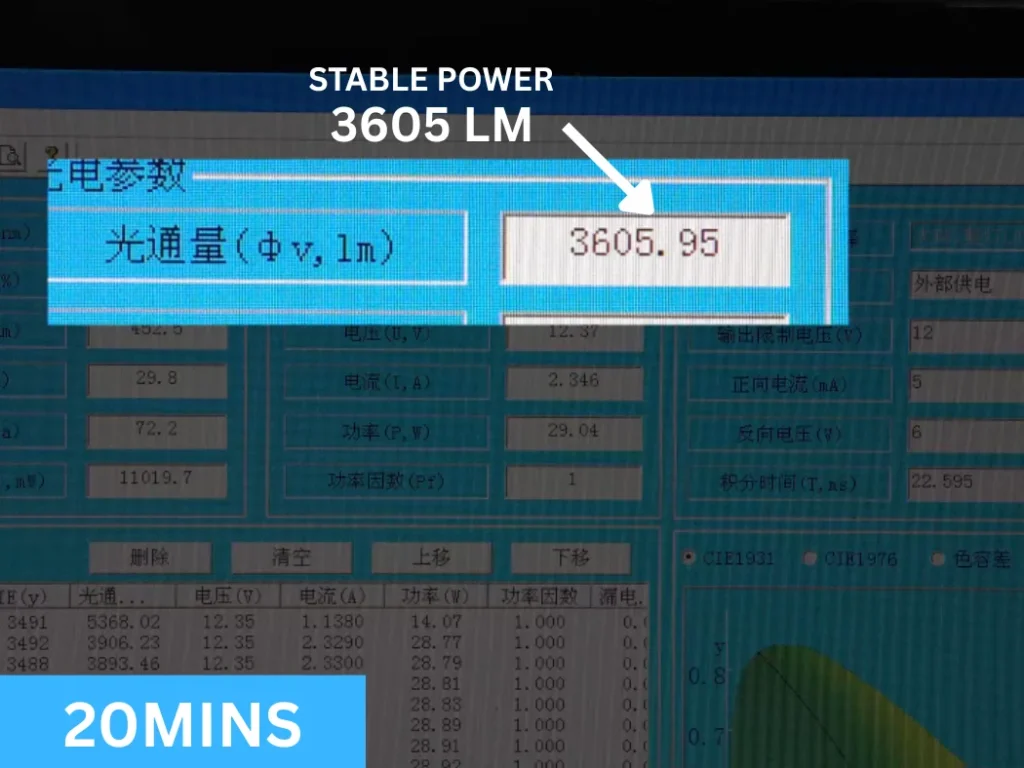

Always Focus on Stable Power:

A quality LED car lights should have a stable power which mean the light output remains consistently bright during use, without dimming due to temperature rise. A quality LED headlight bulb will have a light decay rate of less than 10%.

Using Active Cooling:

The cooling methods of LED headlight bulbs can be classified as active cooling and passive cooling.

Active cooling uses mechanical components like a fan or liquid cooling system to actively remove heat from the LED chip. Passive cooling relies on heat sinks, often made of aluminum.

For optimal heat dissipation, choose LED car bulbs with a fan and copper tube—active cooling is essential for high-power LED car lights.

👉Deep Read: LED Car Light Heat Dissipation: Everything You Need to Know

Has Cutoff Beam Pattern:

A reliable LED headlight bulbs will emit a clear, focused and uniform beam pattern, with a sharp cutoff line that prevents glare to oncoming drivers.

It should illuminate the road ahead without dark spots or scattered light, closely matching the original halogen beam pattern to ensure safe and legal driving visibility.

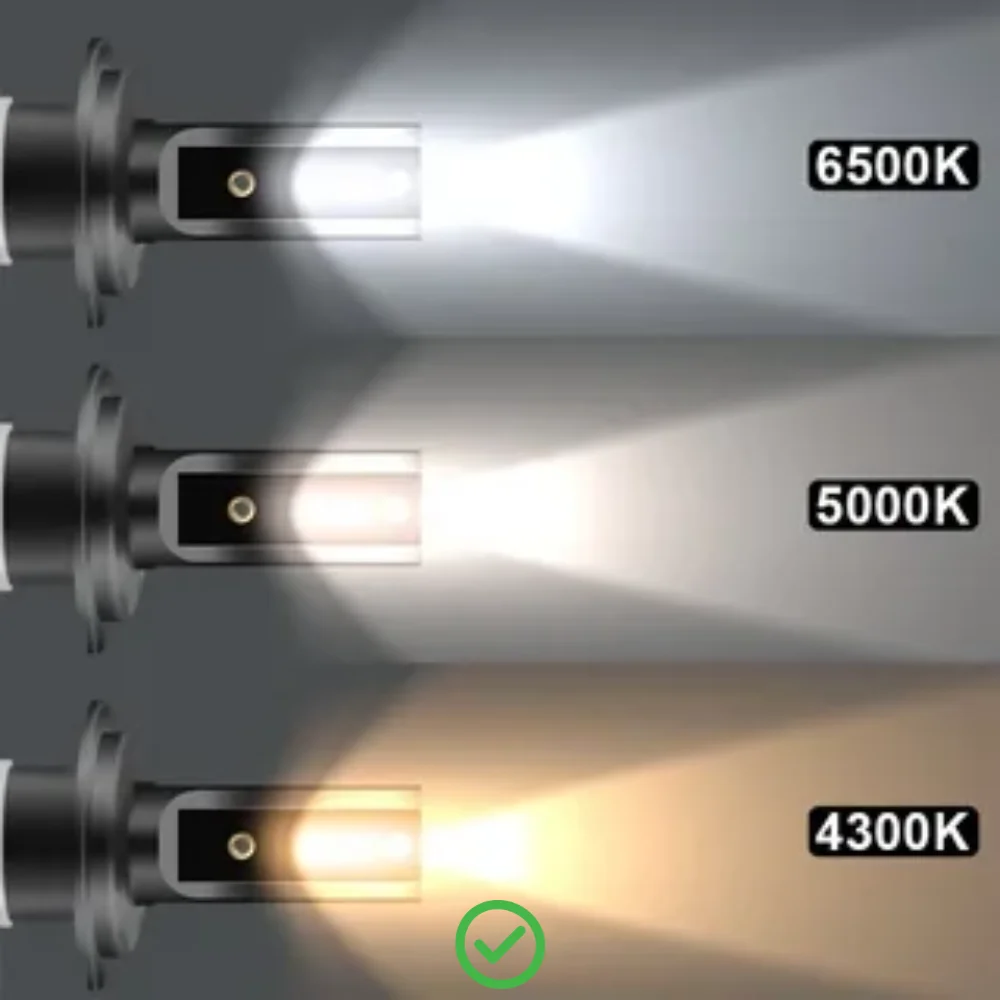

Appropriate Color Temperature:

LED headlight bulbs come in various color temperatures, such as 3000K yellow, 4300K warm white, and 5000K–6500K pure white.

For frequent driving in rain or fog, 3000K and 4300K options offer better road penetration.

If you mostly drive on clear nights, 6500K white bulbs are ideal, delivering a daylight-like effect that improves road visibility.

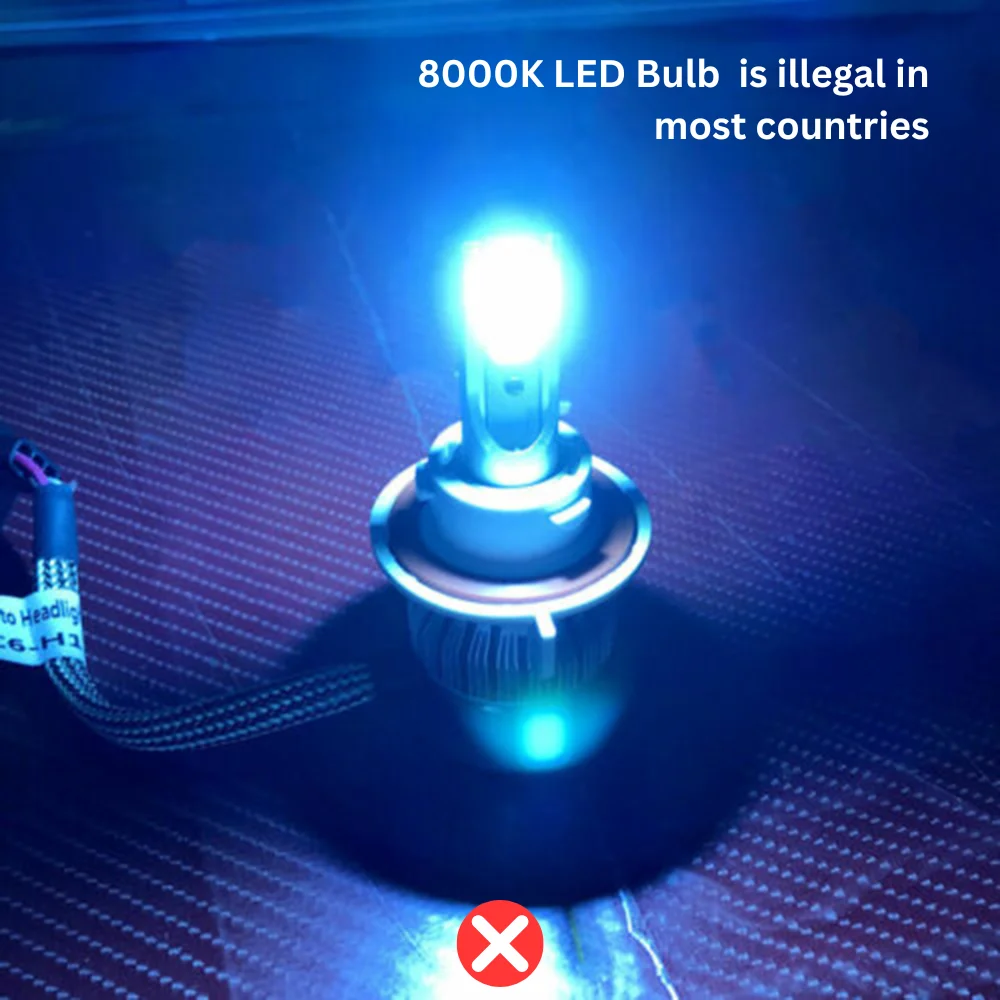

However, bulbs rated 8000K and above emit a bluish light that causes glare and reduced visibility—and are illegal for road use in most countries due to safety and compliance concerns.

👉Deep Read: 4300K VS. 5800K VS. 6500K LED Headlight, Which Is Better For Night Driving?

Compatibility:

It’s better to choose LED headlight bulb with Canbus function. Because LEDs use much less power than traditional halogen bulbs. Your car’s onboard computer (CANBUS system) is programmed to detect the power draw of factory-installed bulbs.

Unlike most LED headlight bulbs that need bulky external CANBUS drivers, NAOEVO uses built-in linear decoding for strong CANBUS compatibility and easy, compact installation.

5 Trusted Brands of LED Headlight Bulb

High-quality brands invest in better materials, precise beam patterns, and advanced cooling systems that protect your vehicle and improve visibility. If you’re looking for top brands to trust, we highly recommend NAOEVO, OSRAM, Philips.

👉Read More: Top 5 Quality Brands of LED Headlight Bulb

OSRAM is a globally recognized brand in the automotive lighting industry, founded in 1919 in Germany. With over a century of innovation, OSRAM is trusted by millions of drivers worldwide for its advanced German technology, high manufacturing standards, and reliable performance.

NAOEVO is a leading Chinese manufacturer dedicated to providing high quality automotive lighting for 19 years. Featured high light efficiency, perfect light beam pattern, long lifespan, and competitive pricing. The brand NAOEVO has been trusted by over 50 distributors around the world.

Philips is a leading name in automotive lighting, founded in 1891 in the Netherlands. Known for over a century of innovation, Philips earns drivers’ trust with features like Safe Beam Technology, AirCool Technology, and some products offering up to 5 years of warranty.

LED HEADLIGHT INSTALLATION & TROUBLESHOOTING

How To Install LED Headlight Bulb Correctly?

Installing LED headlights correctly requires a few important steps to ensure proper fitment, bright performance, and safe driving. H4 and H7 are two of the most common bulb types used in vehicles. Although their designs are different, the installation process is quite similar for both. Below is a detailed step-by-step guide to help you install your LED headlight bulbs the right way.

What You Should Prepare?

The correct LED headlight bulb (e.g., H4, H7 – check your owner’s manual or existing bulb type).

Basic tools, such as screwdrivers or socket wrenches

User manual or installation guide

Step By Step Installation Guide

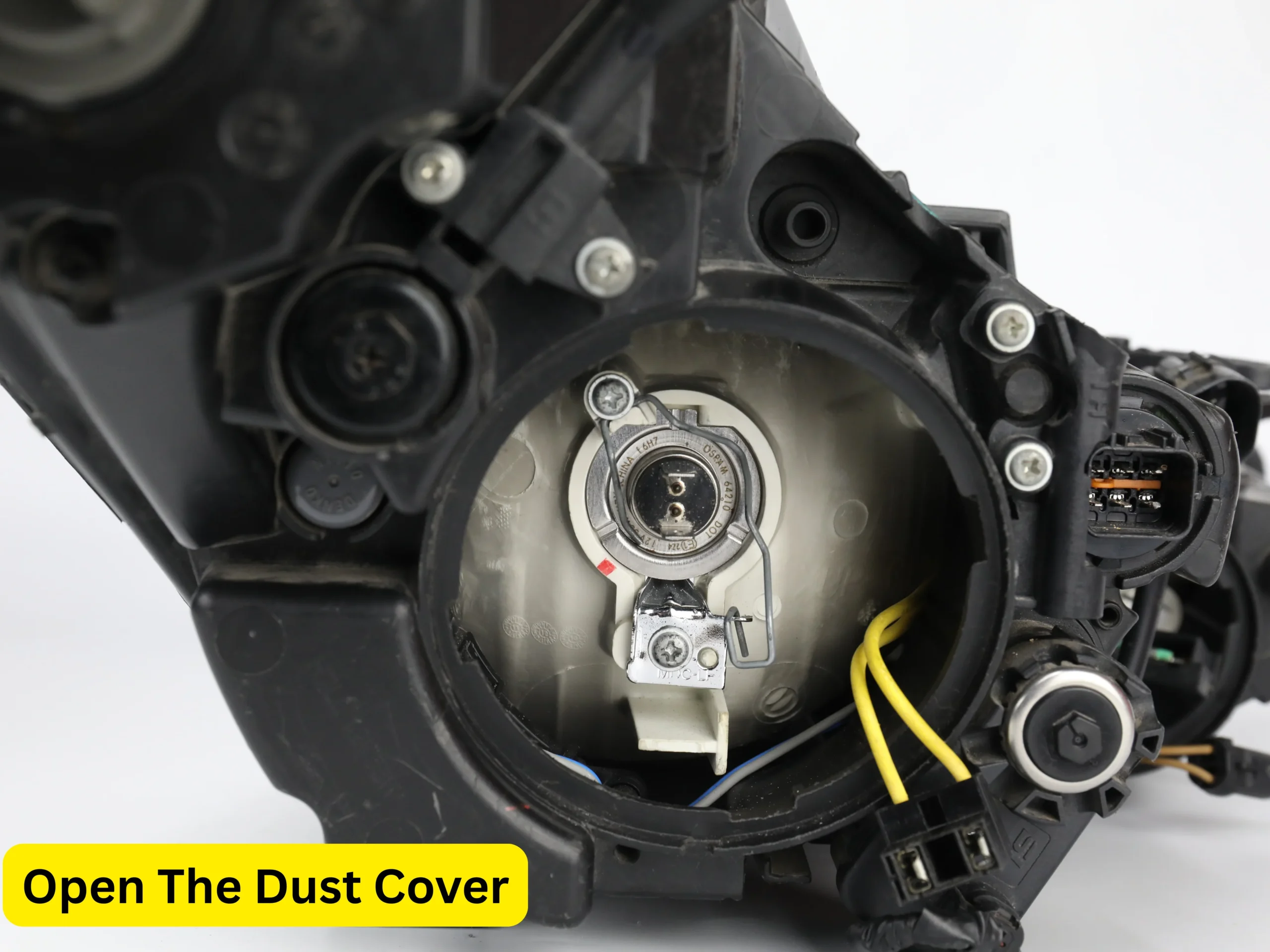

Step 1: Open the dust cover

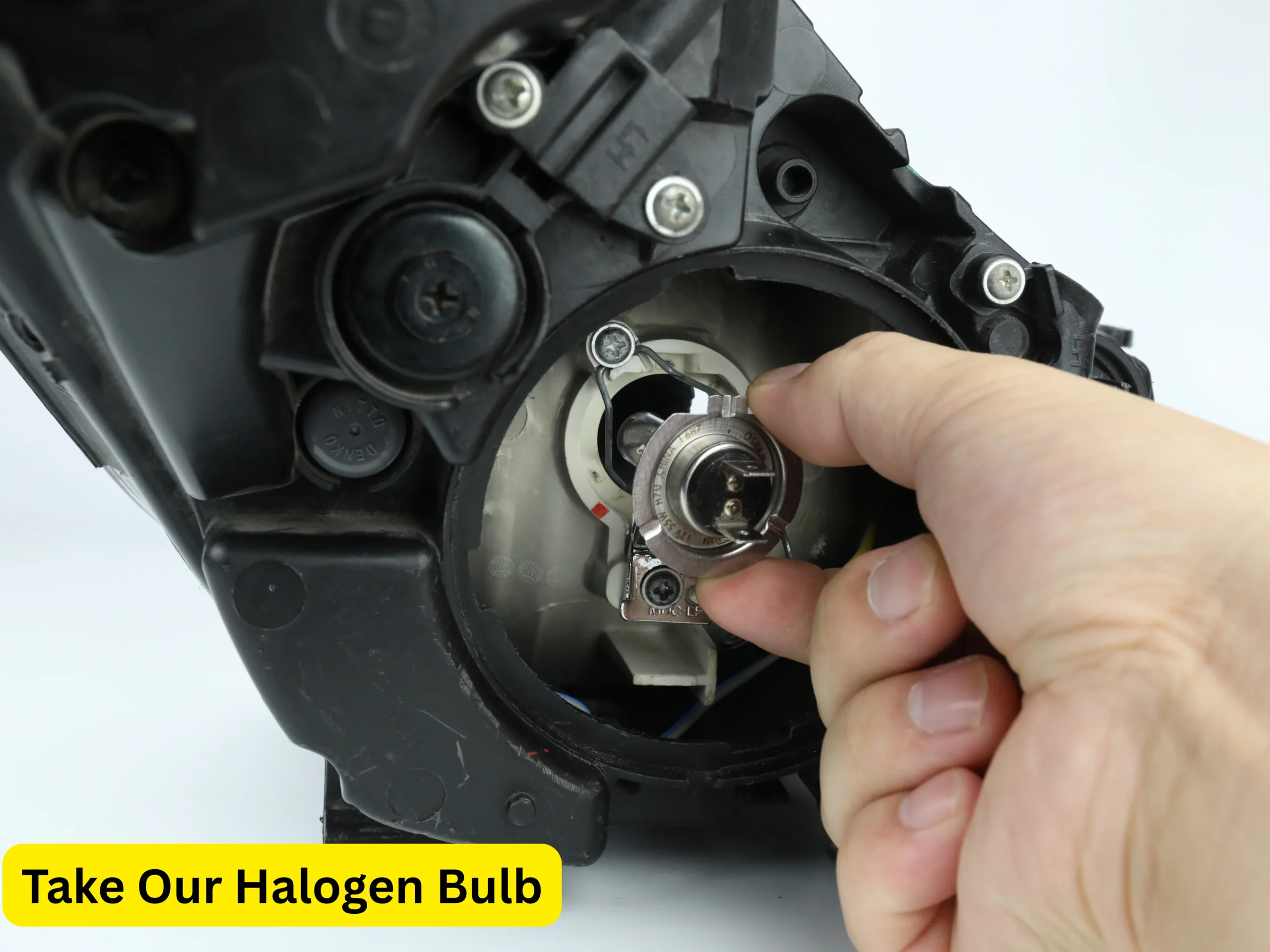

Step 2: Take out original halogen bulb

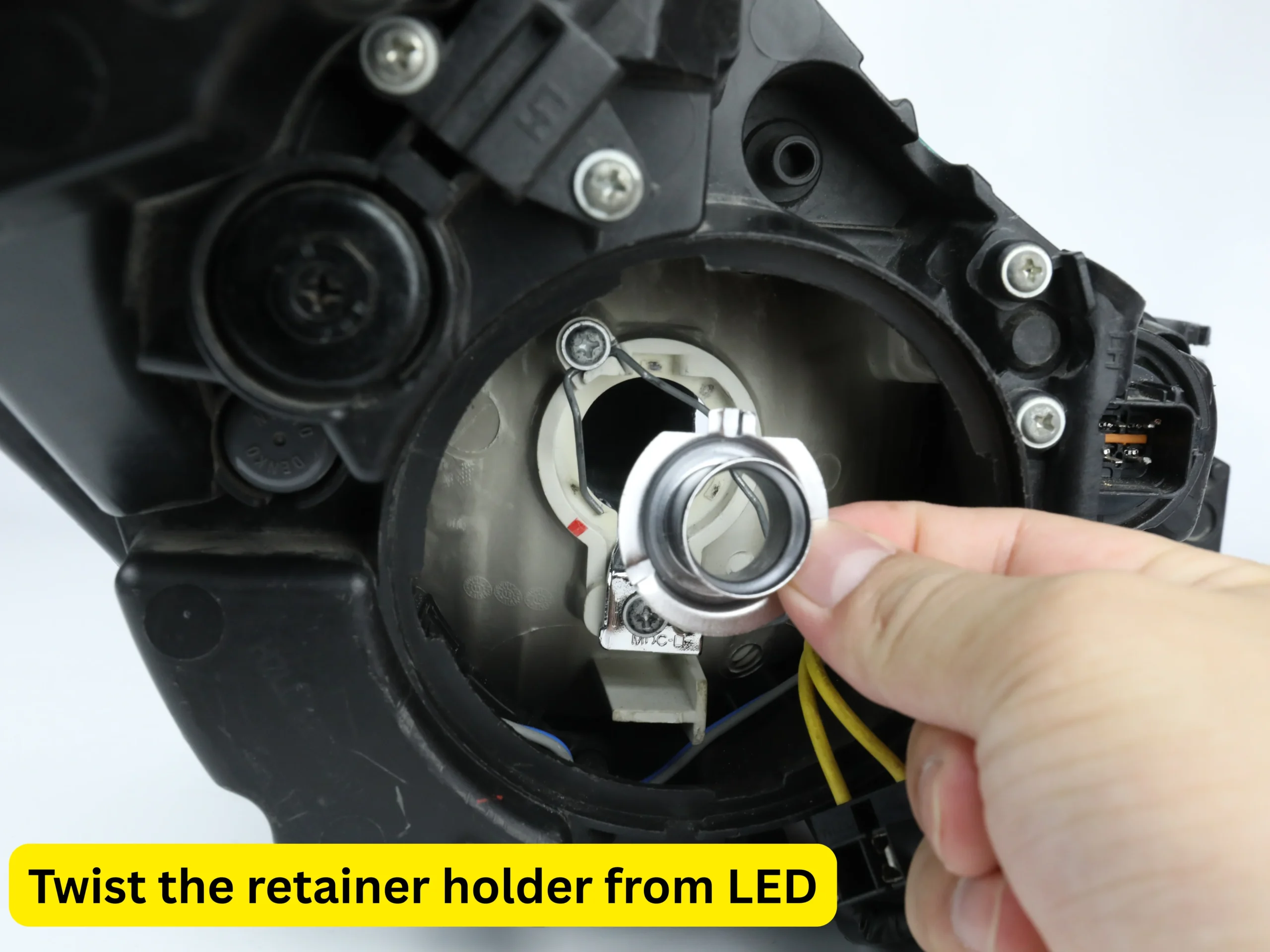

Step 3: Twist the retainer holder from the LED bulb

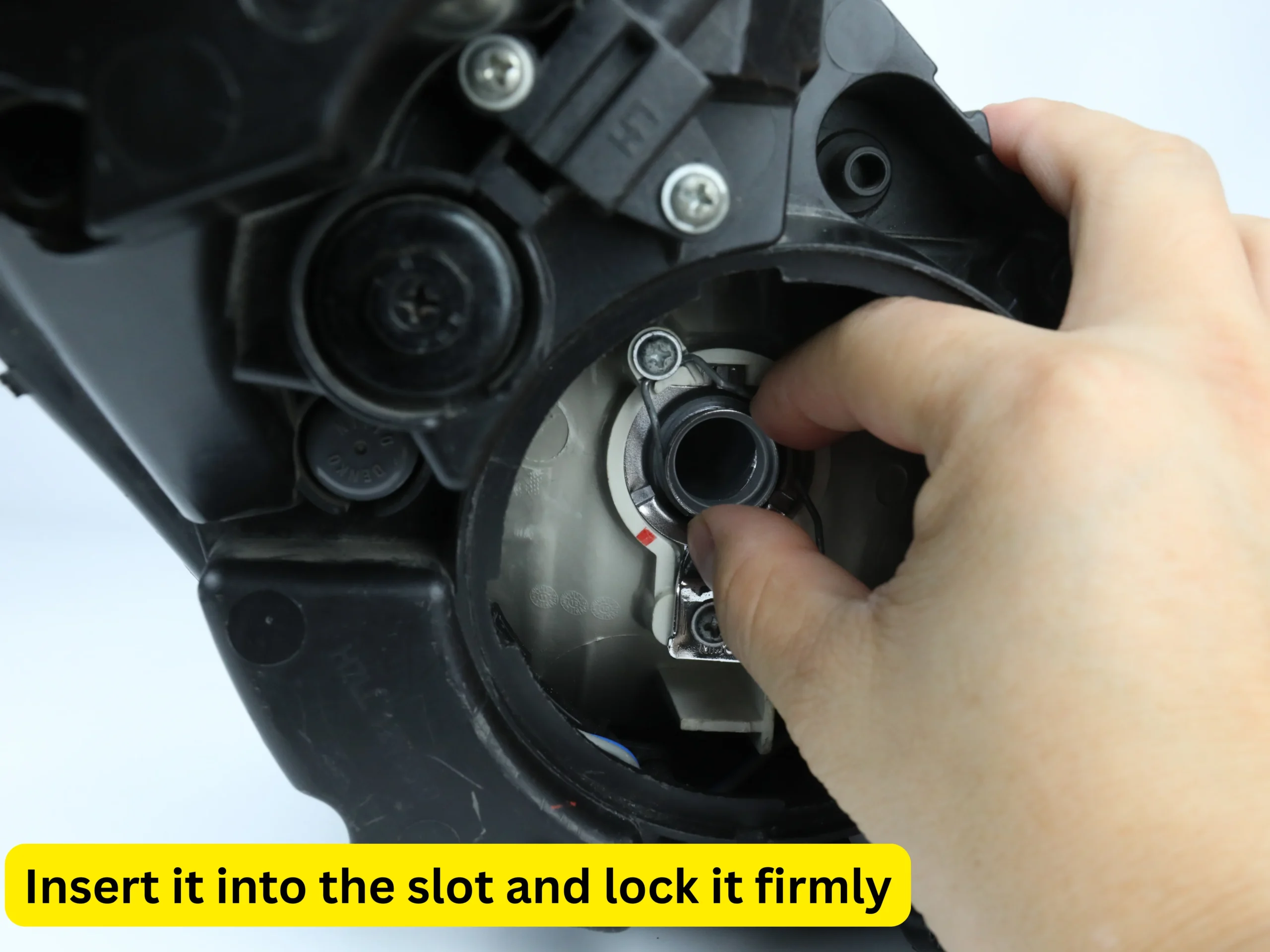

Step 4: Insert the bulb holder into the slot

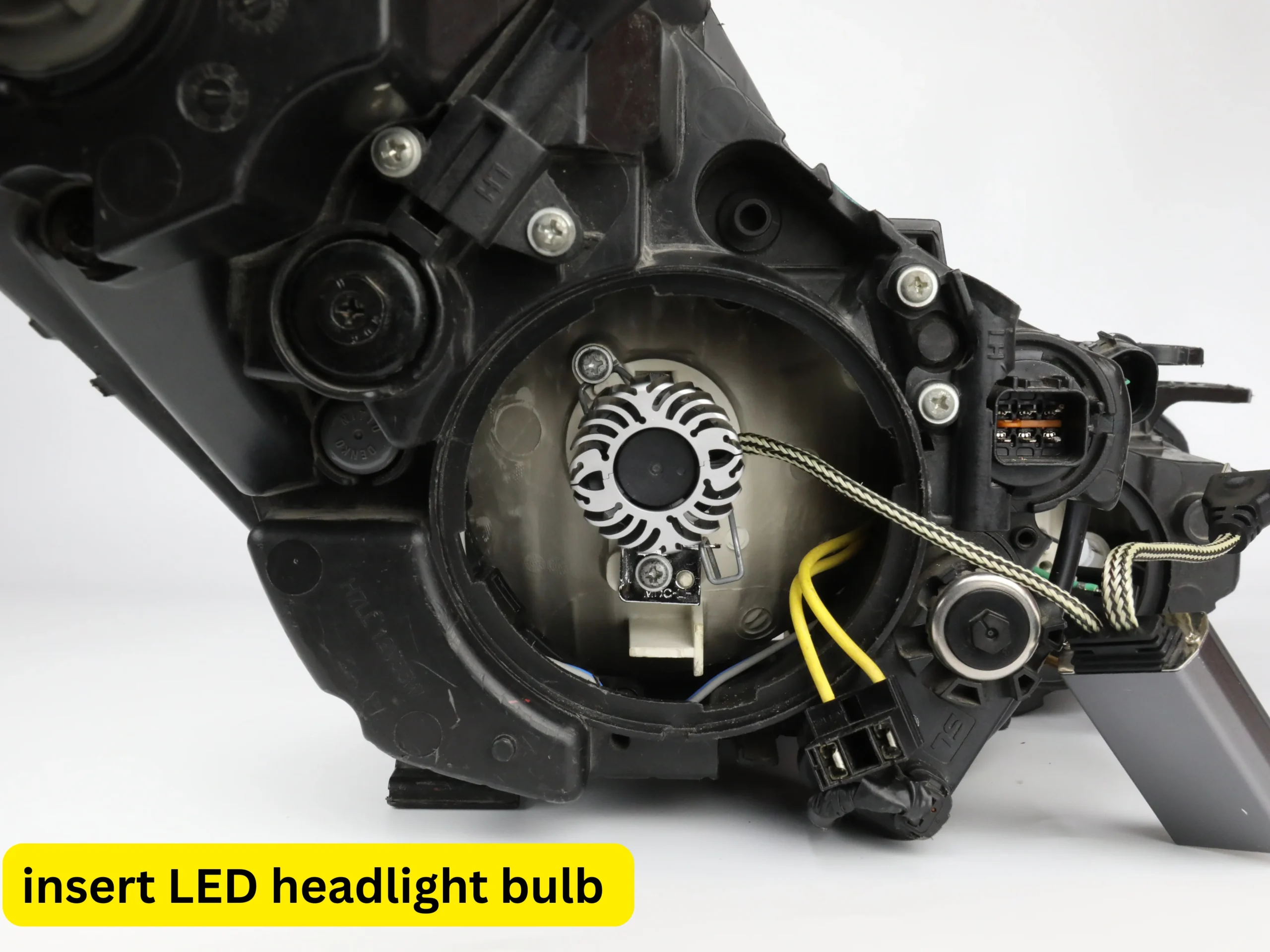

Step 5: Insert new LED headlight bulb into the slot

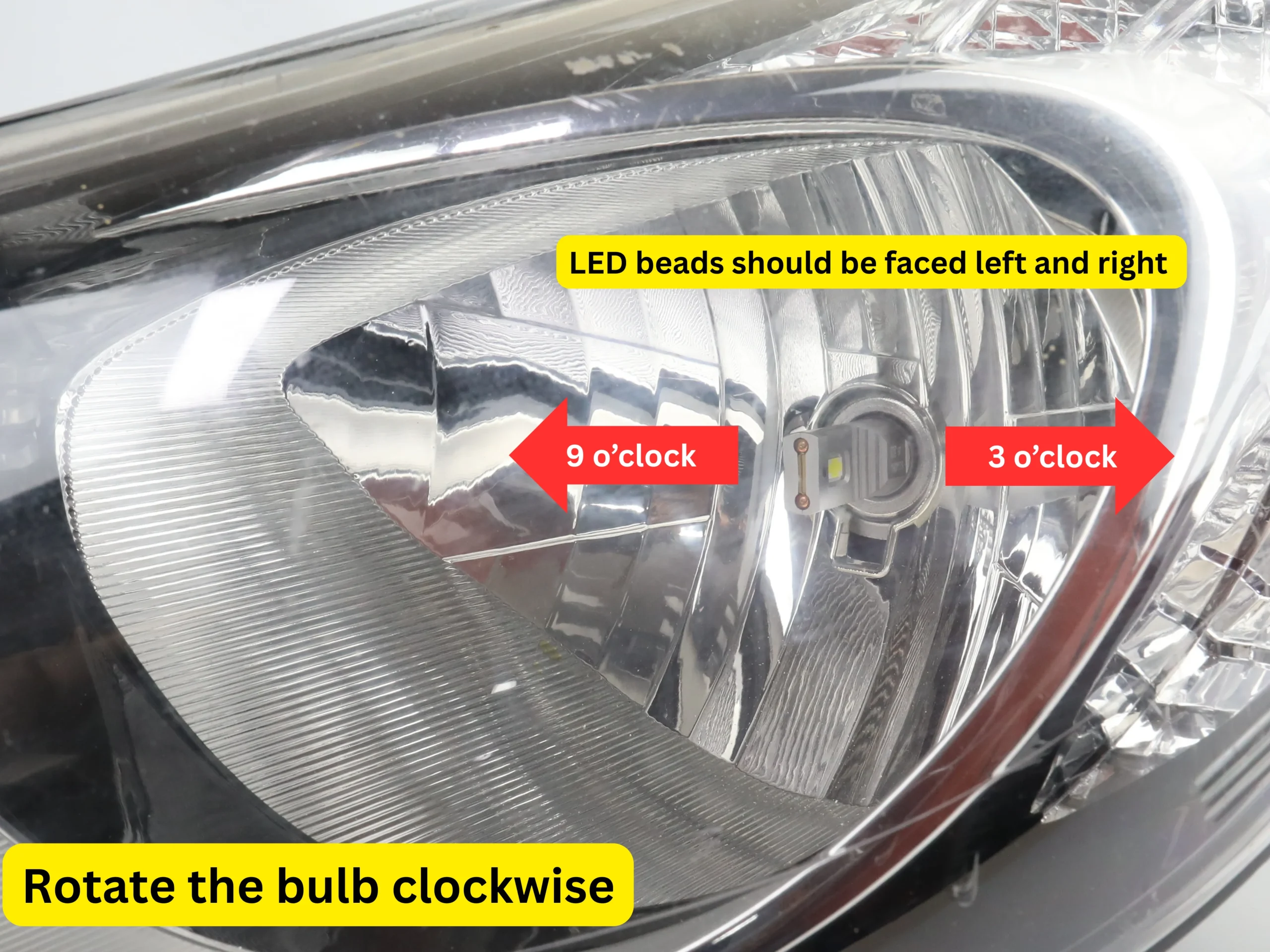

Step 6: Rotate the bulb clockwise, make sure the beads is facing left and right

LED HEADLIGHT COMMON PROBLEMS

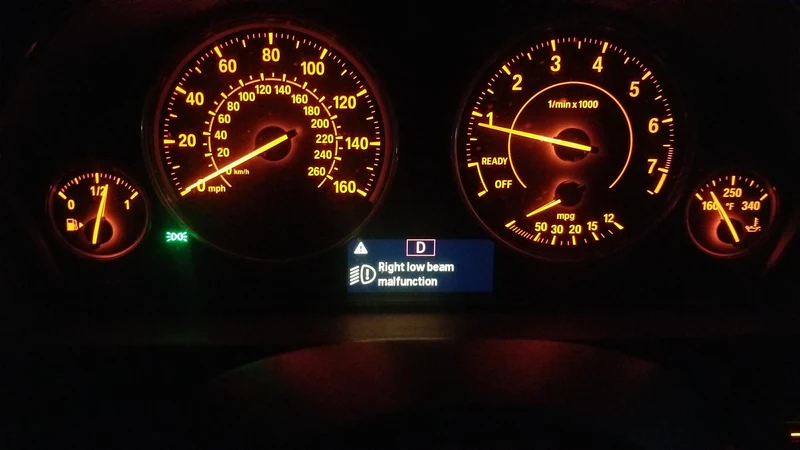

LED Headlight Bulb Canbus Error Codes

When installing LED headlight bulbs, you might encounter decoding problems such as dashboard warnings, flickering lights, or even lights that won’t turn on. These issues often occur because LED bulbs use less power than halogen bulbs, causing the vehicle’s onboard computer (CANbus system) to think there’s a fault or missing bulb.

Common causes include:

1. The car’s system detecting low current draw

2. Electrical noise or interference from the LED driver

3. Incompatible bulb design or missing resistor/decoder components

How to fix it:

Use LED bulbs with built-in CANbus decoders or external resistors designed for your vehicle model. High-quality bulbs with intelligent decoding systems often solve these issues without needing extra modules.

💡Deep Read: LED Headlight Bulb Decoding Problem–Why And How To Fix?

Change Halogen Headlight With LED Bulbs: Why It Still Bad?

When switching from halogen to LED headlight bulbs, some drivers notice that the lighting performance doesn’t meet their expectations. This can be disappointing, especially after investing in what’s supposed to be an upgrade.

In reality, several factors can lead to poor lighting effects—many of which are explained in detail in our guide on Change Halogen Headlight With LED Bulbs: Why It Still Bad?

⚠️Unrealistic Lumen Values:

LED headlight bulbs with unrealistic lumen values often exaggerate their brightness, misleading users. These inflated numbers usually come from theoretical or lab conditions, not real-world use.

⚠️ Inappropriate Color Temperature:

LED headlight bulbs with inappropriate color temperatures, such as 8000K overly blue, can reduce visibility, especially in rain, fog, or snow. These lights scatter more easily and strain the eyes at night, making it harder to see the road clearly and increasing the risk of glare for other drivers.

⚠️Low Luminous Efficiency:

These LED bulb convert less electrical power into visible light and more into heat. This results in dimmer output, poor road illumination, and weaker beam projection.

⚠️ Incorrect Installation:

Installing the LED car bulb at the wrong angle, not securing it tightly, using the wrong adapter or socket, or failing to match the LED chip position with that of the original halogen filament will also lead to poor lighting effect.

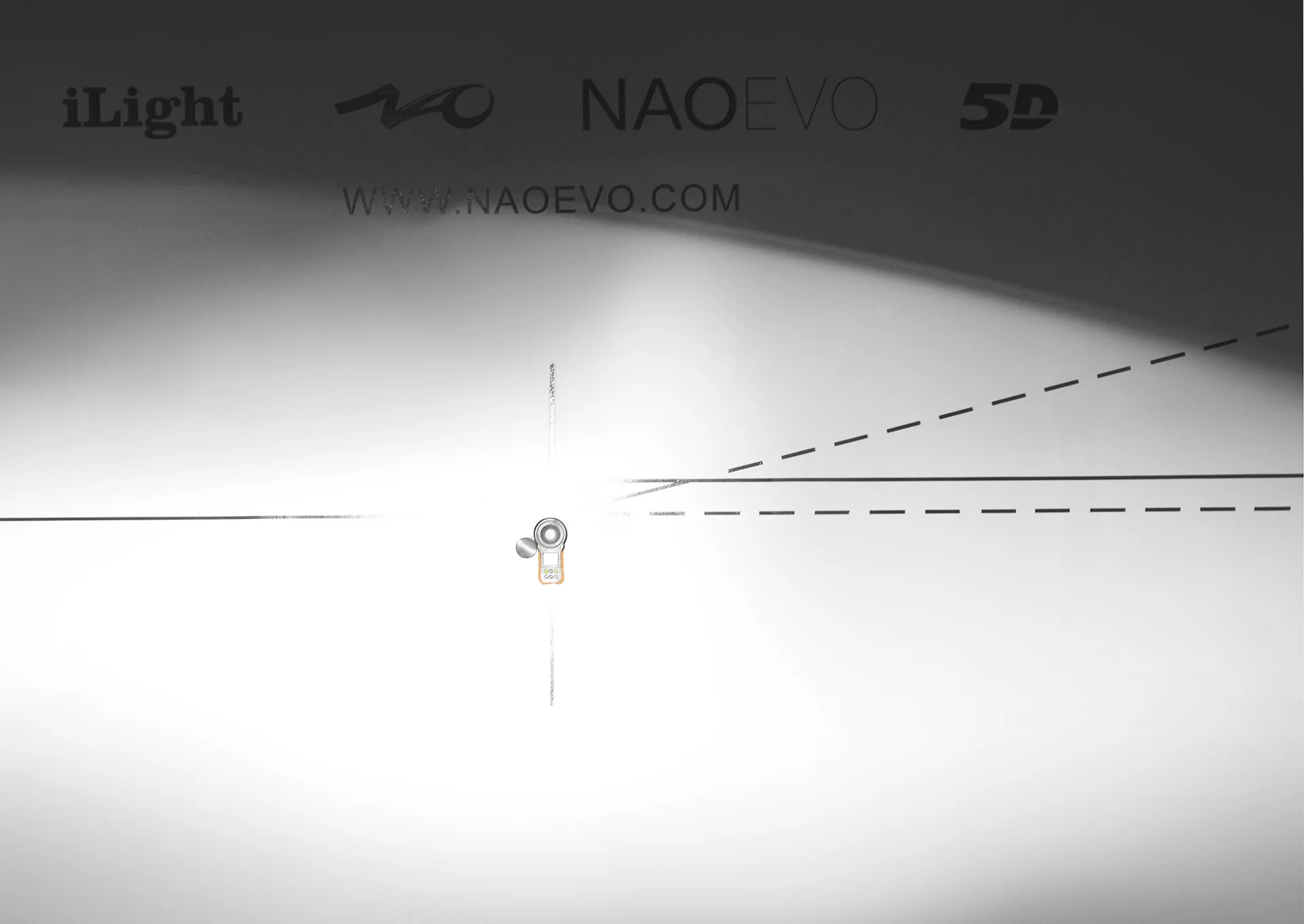

Install LED Bulb In Projector Headlight, Why There’s Dark Spot?

Some drivers claimed that when installing LED headlight bulb in their projector headlight assembly, there is a dark area in the centre. There are several reasons can lead to dark area:

⚠️ Thick Light-Emitting Space

If light-emitting space of LED headlight bulb is too thick, it can not match the thin, precise structure of halogen filaments. Therefore, the beam angle on either side falls short of 180 degrees, creating a shadow in the light output.

⚠️ Improper Installation Methods

Misalignment or incorrect positioning of the LED bulb during installation can lead to uneven light output. Projector headlights are designed for precise light placement, and any deviation can result in dark spots or uneven illumination.

To avoid dark area, it’s better to choose LED headlight bulb has 1:1 bulb size like OEM halogen, as these bulb has thin light-emitting space, greatly mimic the lighting point as halogen, ensuring 360-degree full illumination without any dark spot.

💡Deep dive this topic: Install LED In Projector: Why Is There a Dark Spot?

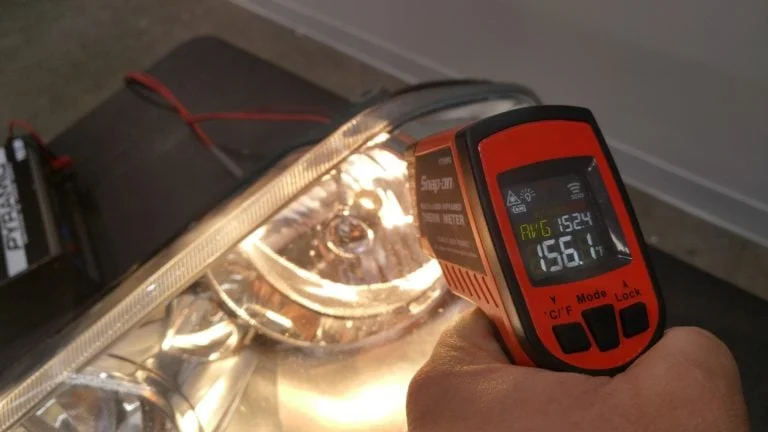

Will LED Headlight Bulb Overheat and Harm My Car?

LED headlights generally won’t overheat and harm your car. While LED headlights do generate heat, they produce significantly less waste heat compared to halogen and HID headlights.

Halogen headlights typically have a power of 55W and an electro-optical conversion rate of only around 3%. After being on for more than 10 minutes, the surface temperature of the bulb can exceed 200°C.

HID headlights, which momentarily surge to 23,000 volts to ignite, have a conversion rate of about 5.5%, and their core temperature can reach around 350°C.

In contrast, LED headlights can achieve an electro-optical conversion rate of approximately 40%. After running for more than 10 minutes, the temperature at the LED chip is usually around 90°C.

When choosing LED headlights, it’s important to consider their heat dissipation design. With proper use and heat dissipation, the temperature of LED headlights will not damage your car.

LED HEADLIGHT PROS & CONS

LED Headlight Bulb Benefits And Drawbacks

LED headlight bulbs are a popular upgrade for many drivers due to their bright output, long lifespan, and energy efficiency. They improve nighttime visibility and give vehicles a modern look.

However, they also have drawbacks, such as higher initial cost, potential installation issues, and possible glare if not properly aligned. Therefore, it’s highly recommended to invest in high-quality LED headlight bulbs from reputable brands.

Pros	Cons
Energy Efficiency Longer Lifespan Instant On Modern Look Lower Heat Output (vs. halogen)	Potential Glare Issues Compatibility Problems Not Always Road-Legal

FAQs

1. Can You Replace a Halogen Bulb With an LED in Car Headlight?

Yes, you can replace halogen bulbs with LEDs, as most are plug-and-play. However, in some countries, aftermarket LED conversions are not road-legal. Always check local laws and use certified bulbs to ensure safety and compliance.

2. Is There a Brightest LED Headlight Bulb On The Market?

Many LED headlight bulbs claim to be the “brightest,” but most only show high lumen output when first turned on. After 10 minutes, their brightness can drop sharply due to poor heat control. What truly matters is a safe beam pattern and stable brightness, not just instant lumen. If you’ve seen bulbs claiming 20,000 lumens or more, here’s why that number might be more myth than reality.

3. Who Makes Quality LED Headlight Bulbs?

Osram and Philips: A global leader in automotive lighting, known for high-quality

NAOEVO: A rising professional brand focused on light efficiency and beam accuracy

Lasfit: Known for plug-and-play LED headlight kits with CANbus compatibility and great customer support.

Auxbeam: Offers a wide range of affordable, high-lumen LED bulbs with decent performance for everyday drivers.

4. Are LED Bulbs Good For Projector Headlight?

Yes, LED bulbs can work very well in projector headlights—but only if you choose the right ones. The key is to choose LED headlight bulb that deliver clear cutoff line with same lighting position as your OEM bulb. Click Here: Are LED Bulbs Good For Projector Headlights?

5. How Long Do LED Headlight Bulbs Last?

Most high-quality LED headlight bulbs have an estimated lifespan of over 3,000 hours. That’s much longer than traditional halogen bulbs, which usually last around 500 to 1,000 hours. With proper cooling and stable performance, LED bulbs can provide years of reliable lighting for your vehicle.

6. Can I Use An LED Headlight With Alternating Current?

No. Most LED headlight bulbs are designed to work with Direct Current (DC), which is the standard power type in cars. Using an LED headlight with Alternating Current (AC) may cause flickering, reduced performance, or even damage to the bulb if it’s not designed for it.

7. What Size Led Headlight Bulb Fits My Car?

To find the right size LED headlight bulb for your car, you’ll need to check your vehicle’s owner’s manual, look at the marking on the original bulb, or use an online bulb size lookup tool.
