H7 bulb is one of the most common bulbs found in most German automotive cars like Mercedes-Benz, Volkswagen, BMW, and South Korean automotive cars like Hyundai and Kia.
If you own one of these vehicles, there’s a high chance your car uses H7 bulbs in the headlight system.
In this full installation guide, we’ll show you step-by-step how to replace your existing bulbs with H7 LEDs – making the process clear, simple, and suitable for car owners of all experience levels.
What is H7 Bulb Type?
H7 Halogen Bulb
The H7 halogen bulb produces light by heating a tungsten filament. Its color temperature is usually around 3,200K, with a power of 55 watts and brightness of about 1,000 lumens. It can light up to about 50 meters and typically lasts around 500 hours.

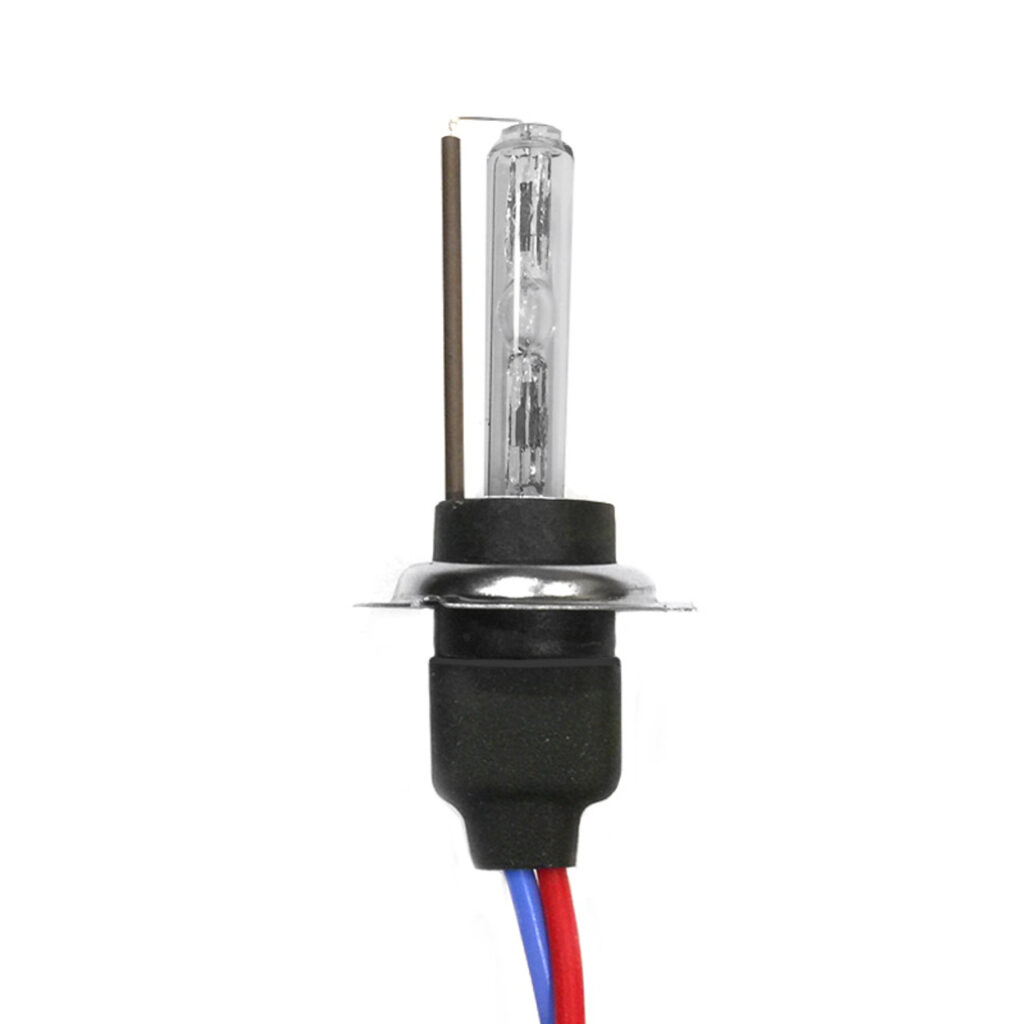

H7 HID Bulb
Xenon bulbs (HID bulbs) create light by using high-voltage electricity to ignite gas inside the bulb. Their color temperature is around 4,200K. They use 35 watts of power and offer much higher brightness — between 2,500 and 3,200 lumens. The light can reach up to 100 meters, and the bulbs can last over 3,000 hours.
H7 LED Headlight Bulb
Compared to halogen and HID bulbs, H7 LED bulbs are a much better choice. They are brighter, use less energy, and last much longer. Unlike HID (xenon) bulbs, LEDs stay strong for years without needing replacement.
LEDs use the vehicle’s electrical energy to power solid-state light sources, making them extremely durable and low-maintenance – you could use LED bulbs for decades without worrying about them wearing out.
Confuse about the different between H4 and H7 bulb? You can also learn: H4 vs. H7 what’s the difference?

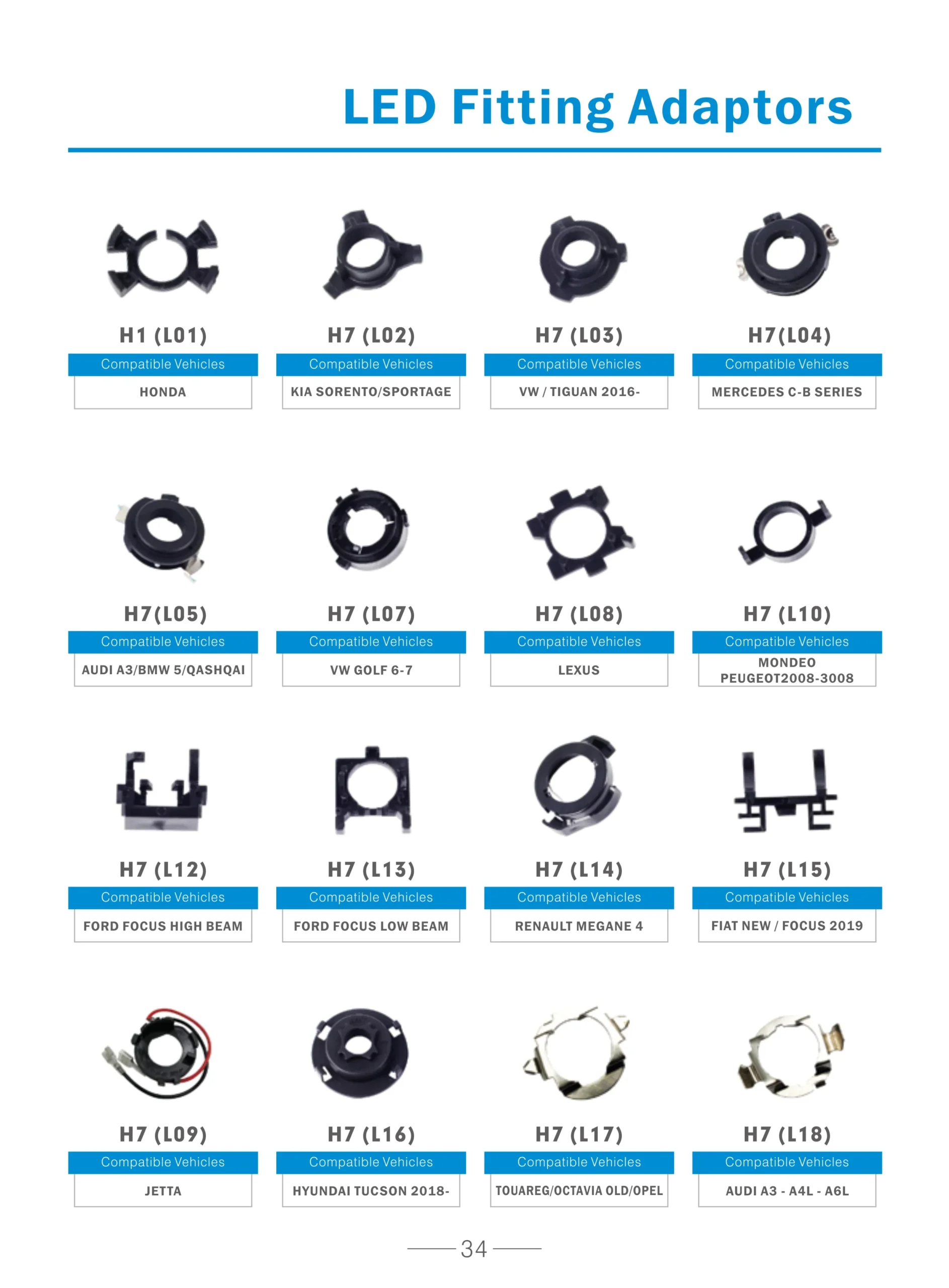

Types of H7 Headlight Bulb Adapter
The H7 bulb is used in many different vehicles, but the mounting method can vary slightly. For most German and South Korean cars, you usually need a special adapter to secure the H7 bulb into the headlight housing. The H7 bulb adapter looks like this:
How To Install H7 LED Headlight Bulb | Step By Step Guide
Because different vehicles use different types of H7 bulb adapters for halogen bulbs, the installation process for H7 LED bulbs can vary greatly from one car to another.
Before you start, if you’re not sure whether your vehicle uses an H7 socket or a different type like H4, H11, or 9005, check out our guide: H4, H7, H11, 9005 | How to Identify Headlight Bulb Socket?.
H7 bulb adapters are commonly required in models from Volkswagen, Mercedes-Benz, BMW, Audi, Hyundai, and Kia. To help you understand better, we’ve broken down the H7 installation process into three main socket types you may encounter.
Type 1: Standard H7 Socket (Without H7 Bulb Adapter, With Spring On The Housing)
Step 1:

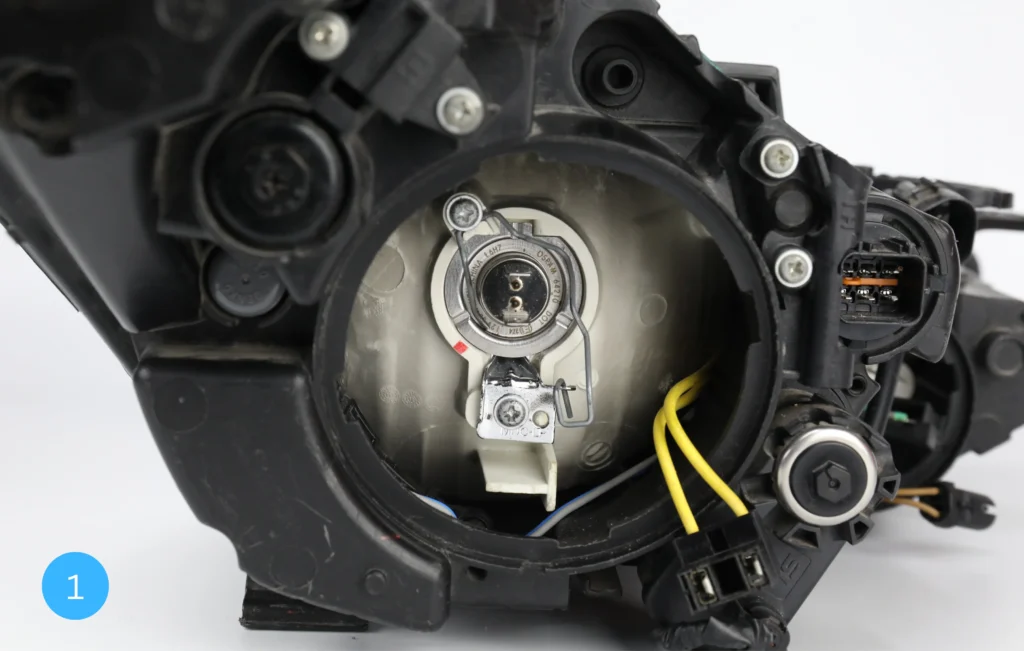

Remove the original H7 bulb from the headlight housing.
Step 2:

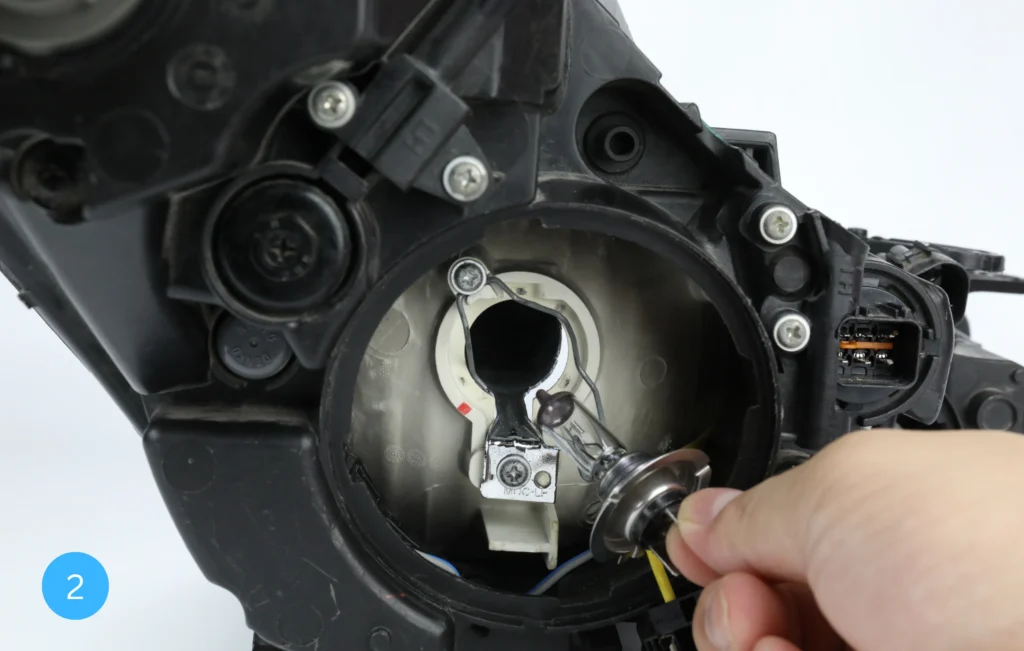

Plug the new LED H7 bulb into the factory H7 power socket.
Step 3:
Align the LED H7 bulb correctly with the housing and lock it into place.
Step 4:

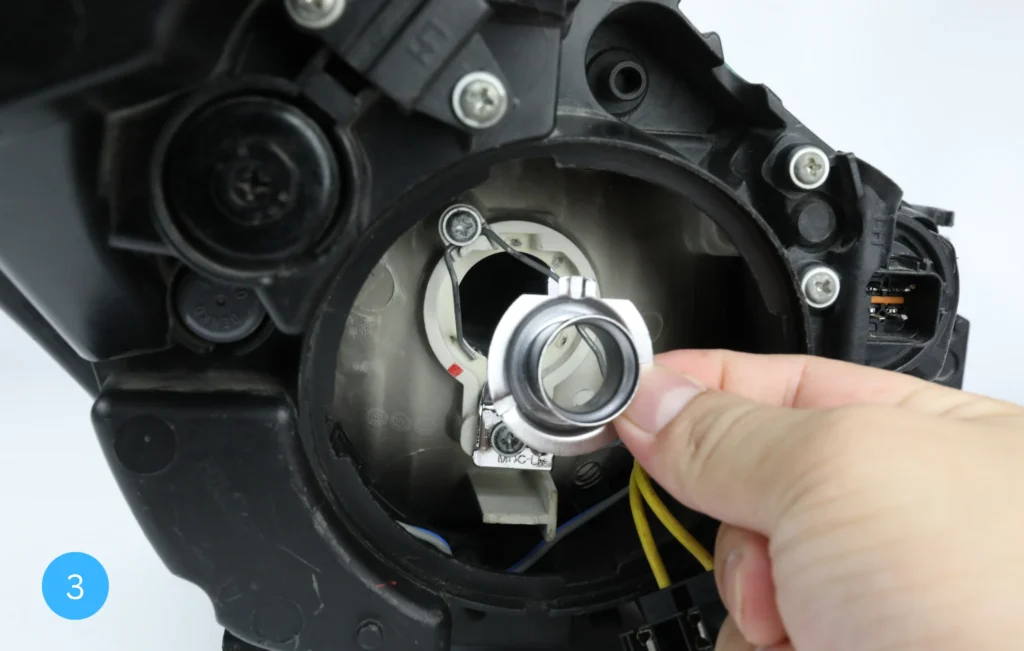

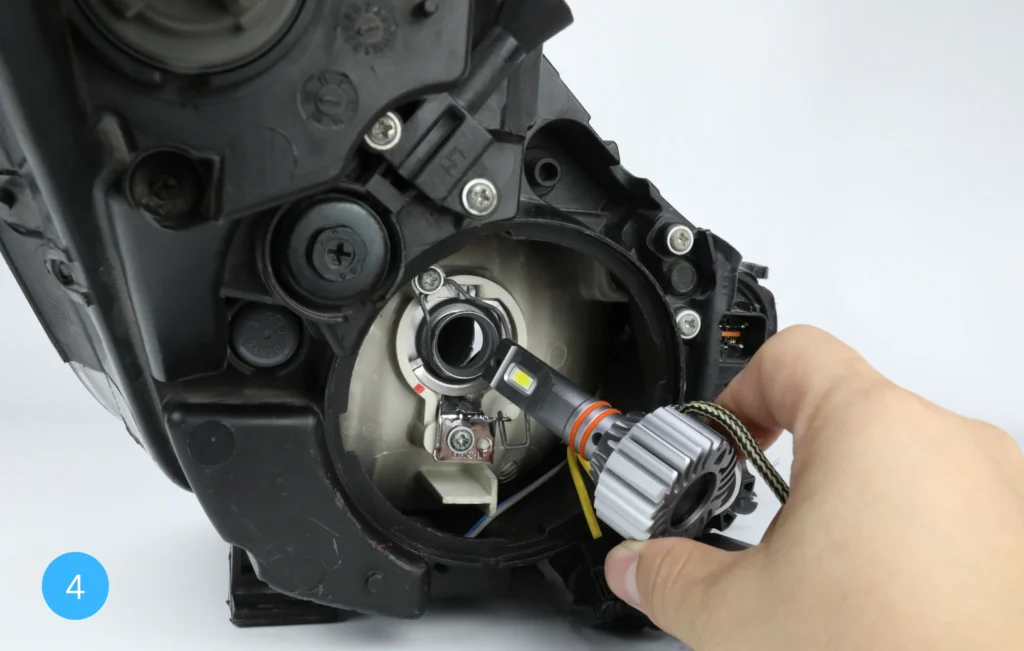

Secure the LED bulb’s base collar into the housing using the spring clip. Once it’s locked in place, insert the LED H7 bulb back into the collar and complete the installation.
Step 5:

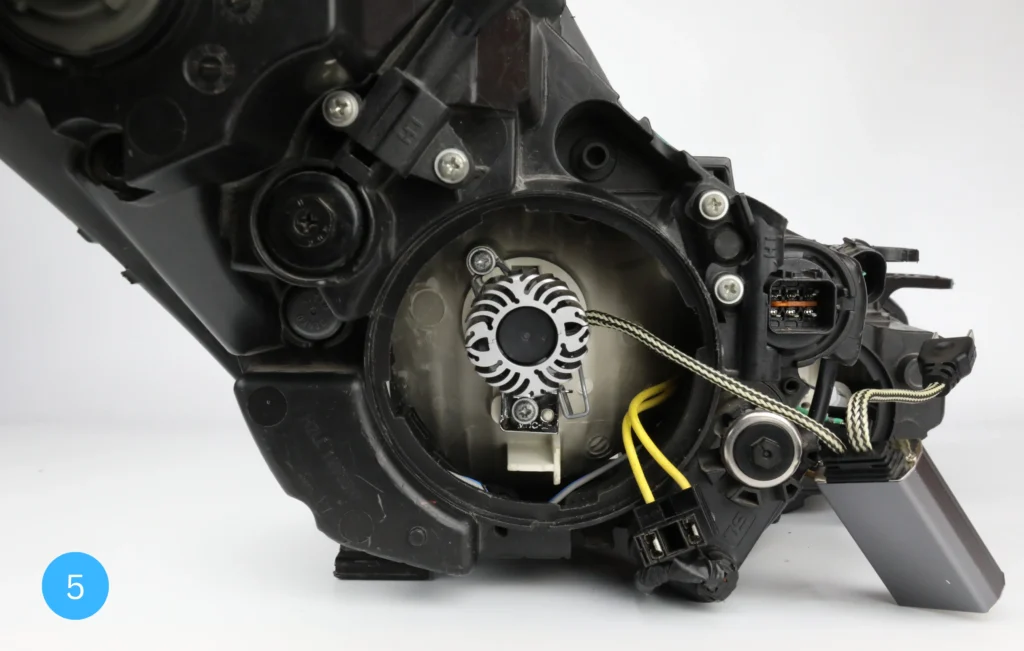

Connect the power

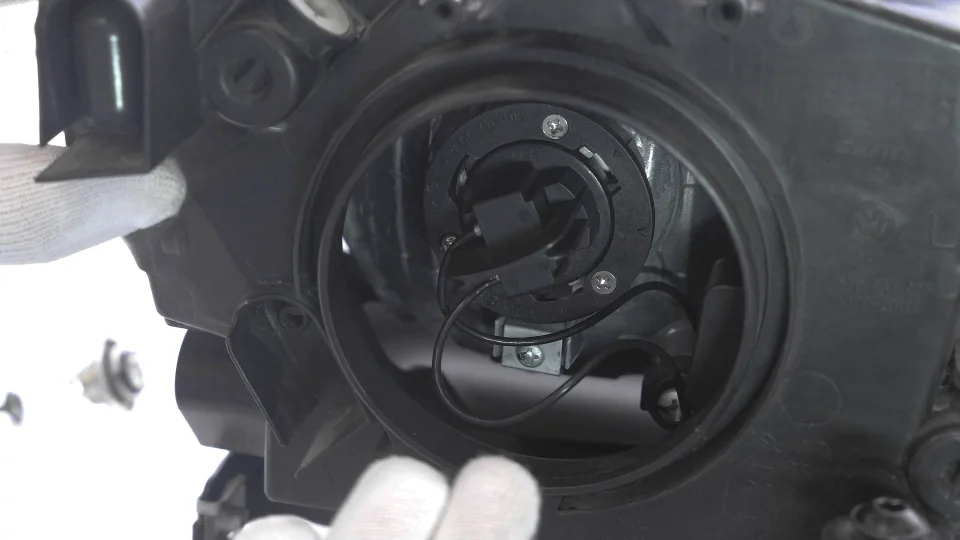

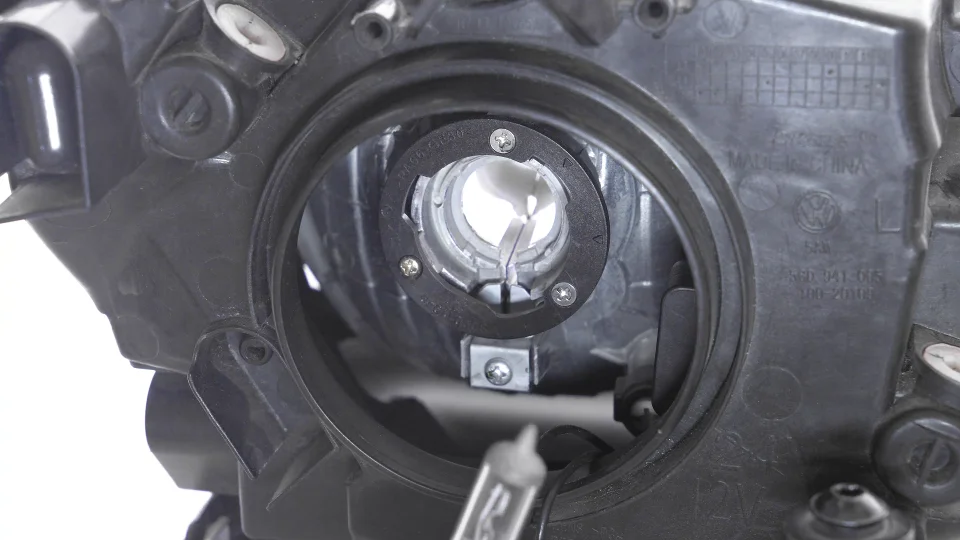

Type 2: Standard H7 socket (without H7 bulb adapter, without spring on the housing)
Step 1:
Remove the original H7 bulb from the headlight housing.
Step 2:

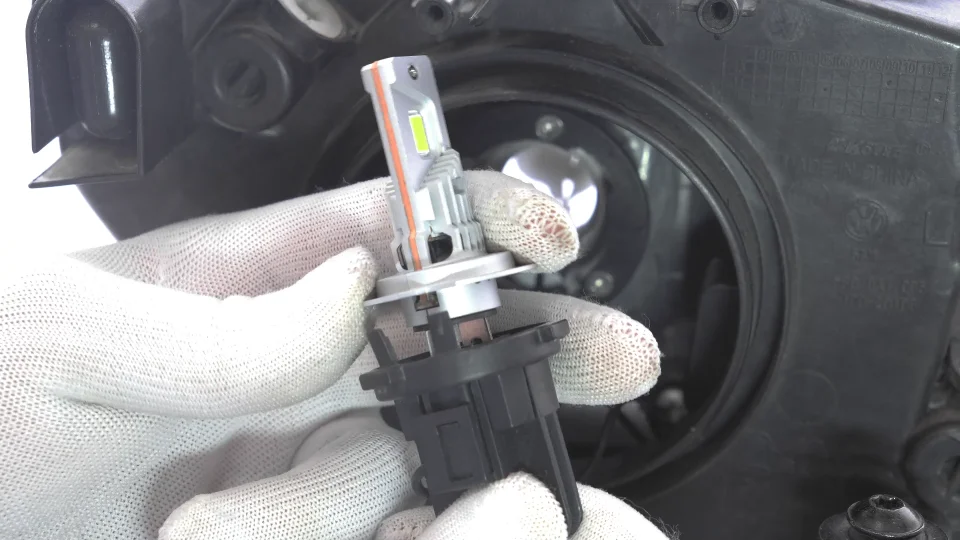

Plug the new LED H7 bulb into the factory H7 power socket.
Step 3:

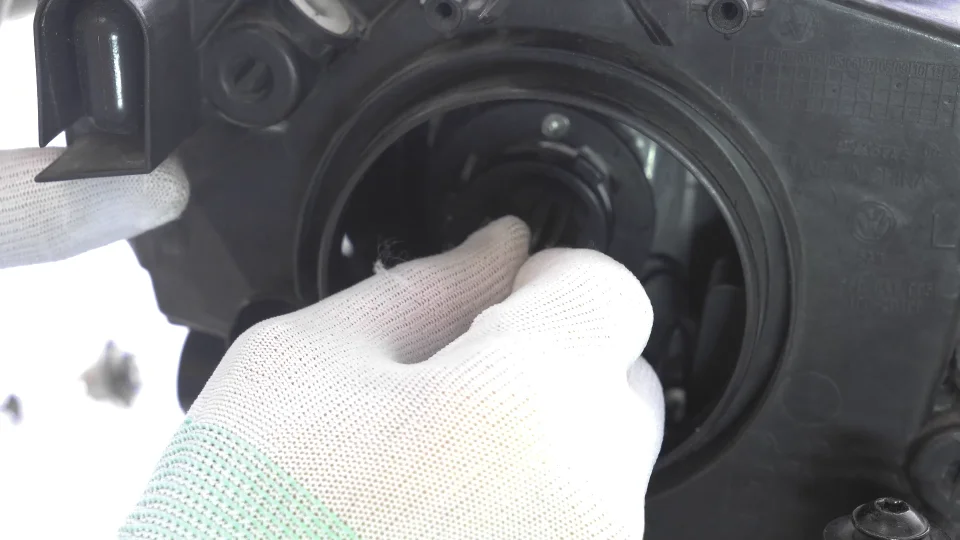

Align the LED H7 bulb correctly with the housing and lock it into place.
Step 4:
Reinstall the dust cover.
Choose plug-n-play LED headlight bulb ensures direct installation without any modifications.
Type 2: Standard H7 socket (without H7 bulb adapter, without spring on the housing)

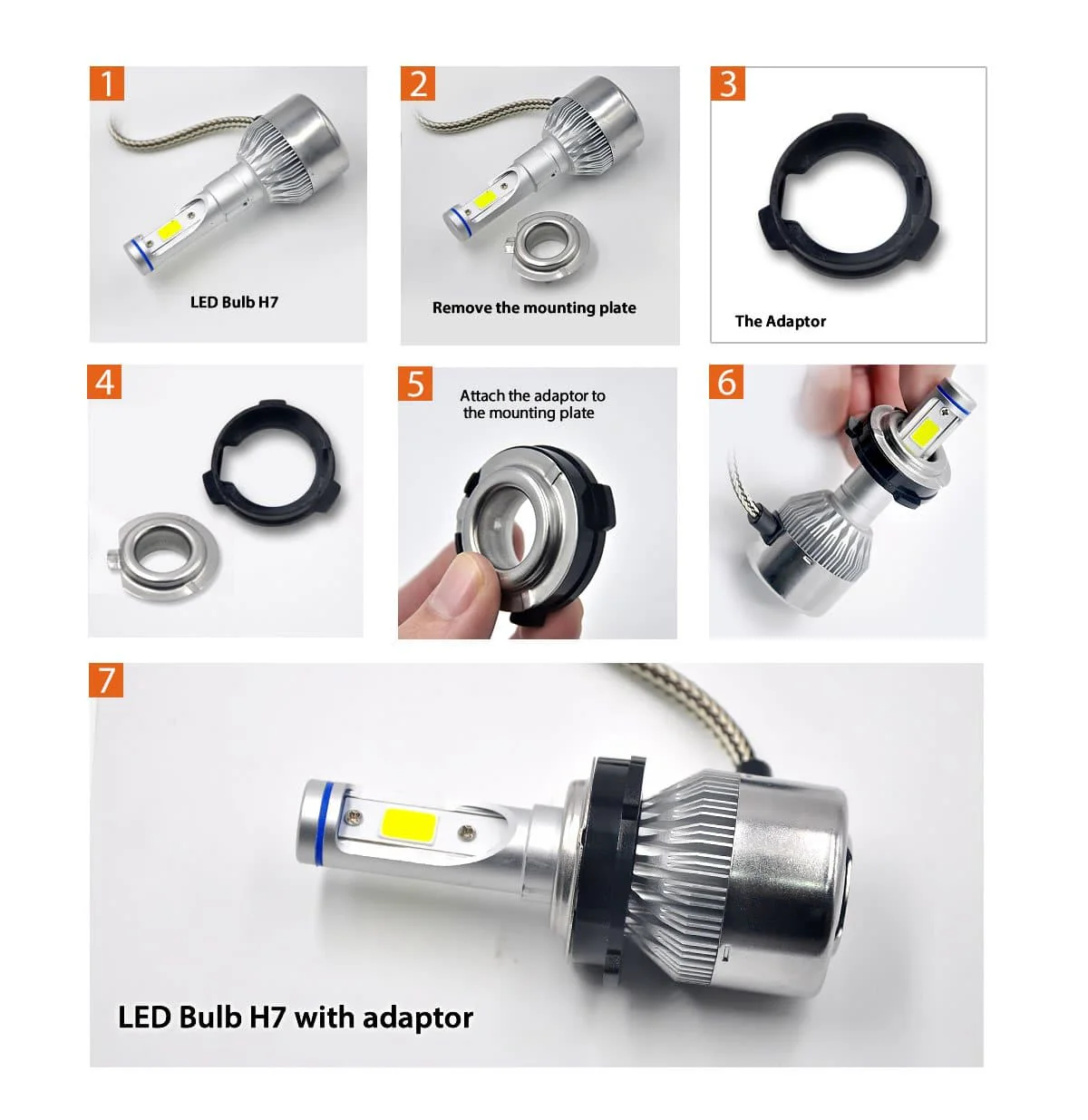

Step 1: Remove the factory H7 bulb and the attached H7 adapter from the power socket.
(When you take out the factory H7 bulb, you’ll notice there’s an adapter between the bulb and the power connector.)
Step 2: Remove the base collar from the new LED H7 bulb.
Step 3: Slide the universal H7 adapter onto the LED H7 bulb, then put the base collar back on.
Step 4: Insert the assembled LED H7 bulb into the headlight housing.
Step 5: Plug the LED H7 bulb into the factory H7 power socket.
Top 3 H7 LED Headlights You Can Trust
If you’re looking for direct plug-in H7 LED replacement bulb without complex installation, then the NAOEVO Smart series will be your best choice. Featured 1:1 halogen design, Smart LED headlight bulbs have same lighting position as standard, ensuring standard light beam pattern while enjoy increased brightness at night.
Another features for these bulbs must be its super linear decoding. Some European cars that use H7 model may have sensitive headlight system, the Smart series has built-in linear decoding technology, which means that they can fit most of the vehicles model without causing Canbus issues such as light flashing, radio interference, and dashboard warning.
Our professional team found that most of mini design H7 LED headlight bulb has a high light decay, which means that lighting for a while its light output drops drastically. Equipped with 8*45MIL chip, delivering an output of 35W 3800LM each bulb. SMART Series LED headlights can keep a low light decay rate of less than 5% (while others may reach to 15-20%) Drivers will enjoy more light at night without a premium cost.
SPECIFICATION | |
|---|---|
Power | 35W 3800LM/Bulb |
Input Voltage | DC12-15V |
Working Current | 2.3A |
Color Temperature | 6500K |
Installation | Plug-n-Play |
Cooling | Fan + Aluminum |

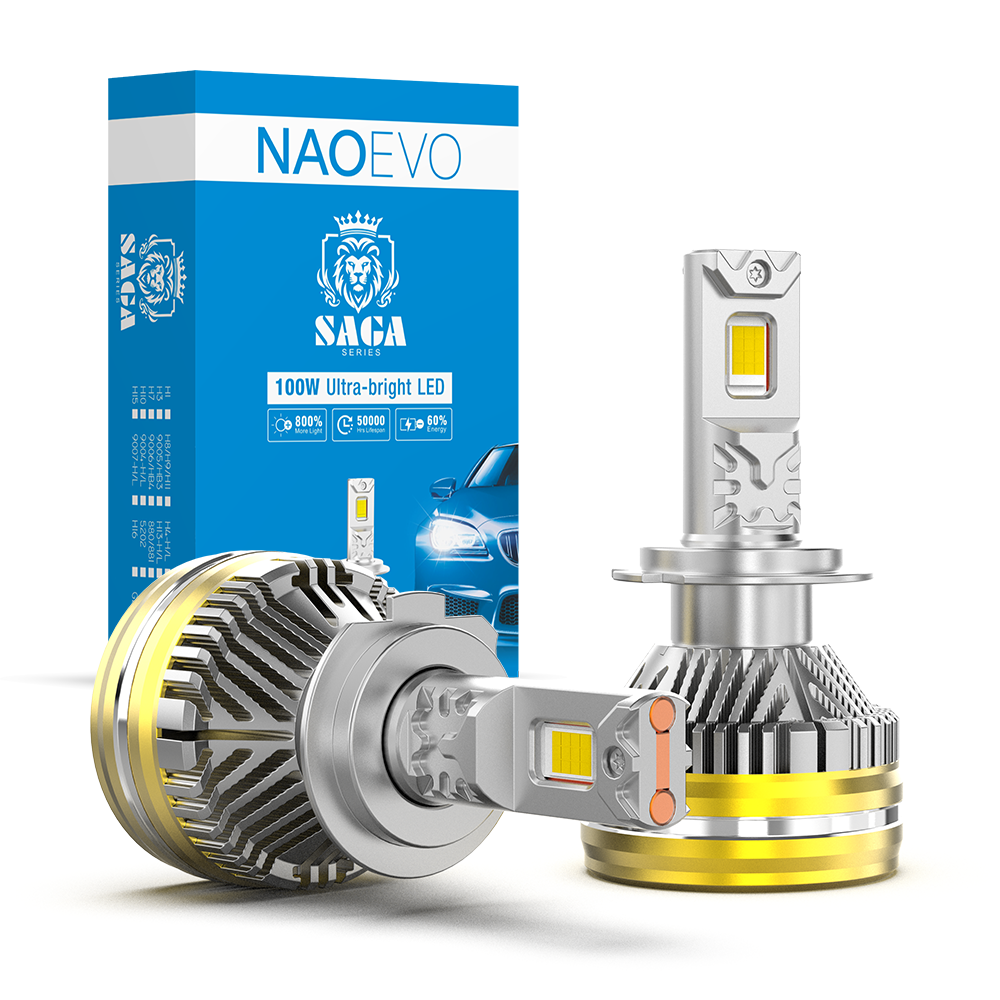

If you’re searching for a high-brightness H7 LED headlight bulb to replace your factory H7 bulb, the NAOEVO SAGA Series is an excellent choice. Each bulb is equipped with 12 pieces of 55MIL high-efficiency flip chips, delivering an impressive 100W 12,000 lumens per bulb – making them up to 600% brighter than standard halogen bulbs.
To ensure efficient heat management, the SAGA H7 LED bulbs feature dual liquid copper tubes that can transfer up to 40W of heat per cycle. Combined with a high-speed 12,000RPM cooling fan, these bulbs maintain a safe operating temperature even during long periods of use, helping to guarantee a longer lifespan.
SPECIFICATION | |
|---|---|
Power | 100W 12000LM/Bulb |
Voltage | DC9-16V |
Working Current | 7.4A |
Color Temperature | 6500K |
Installation | Plug-n-Play |
Cooling | Fan + Aluminum + Dual Copper Tubes |
If you’re searching for H7 LED headlight bulb in high brightness, and attractive design, NAOEVO NR Series will be good for you. These bulbs is inspired by rocket, meaning that these bulbs deliver high brightness and strong light output like soaring rocker.
NR LED car lights are equipped with 6 flip chips. Four diodes are arranged in a square to create a wide and focused beam pattern, while two diodes positioned at the front and back provide 360-degree full illumination without any dark spots. Most customers are impressed by the sharp cutoff line and the strong, focused forward beam.
Moreover, NR LED headlight bulbs support OEM/ODM customization services, making them an ideal choice if you have your own brand. Contact NAOEVO team to get best solution.
SPECIFICATION | |
|---|---|
Power | 55W 6600LM/Bulb |
Voltage | DC9-16V |
Working Current | 4.07A |
Color Temperature | 6500K |
Installation | Plug-n-Play |
Cooling | Fan + Aluminum + Dual Copper Tubes |
