Upgrading your car’s lighting system can be a game-changer, but is it possible to replace your original HID (High-Intensity Discharge) bulbs with LED ones?
As the demand for cars increases, the demand for the supporting automotive aftermarket is also increasing day by day. Modifying headlights is one of the potential needs. After buying a car, modifying it into a unique car that you like has become a major concern for everyone. Because the headlights are the most conspicuous part of a car and an important part of improving its appearance.
At present, LED bulbs are the mainstream of headlights and the most popular headlights. If there are many owners whose original cars are xenon lamps and want to modify them, can they change the original xenon lamps to LED bulbs?
If it’s yes, how to replace the original xenon lamps with LED headlights?
Successful HID to LED Upgrade: NAOEVO HD5 Series for Volkswagen
Discover our successful case of upgrading original HID bulbs to LED for our customers.
Car Model: 19 Volkswagen TiGuan
OEM HID Model: D5S
LED Bulb: NAOEVO HD5 Series
Why Choose NAOEVO HD5 LED For HID Upgrade?
The working principles behind Xenon (HID) and LED headlights differ significantly, which has made upgrading from HID to LED a challenge for years. After many years of research and development, NAOEVO successfully developed a specialized LED headlight bulb for OEM HID replacement.
Although the operating principles of HID and LED headlights are different, designing bulbs suitable for the same vehicle model requires tailoring them to the OEM D5S headlight specifications.
This involves 1:1 development of the light source position, mounting points, and other features. As shown in the image below, the design of the HD5 LED’s shape, light-emitting position, and power interface are perfectly matched to original D5S.
From Slow Start HID to Instant Bright LED Headlights
Customer Feedback: The driver who come to upgrade the HID bulb indicates that his Volkswagen TiGuan originally came with D5S xenon headlights.
However, the current xenon headlights take about 3–5 seconds to fully light up each time they are turned on, which causes inconvenience during use.
In emergency situations where quick lighting is essential, this delay can be particularly dangerous. This is one of the main reasons for upgrading the headlights.
The second reason is the inadequate road illumination. Despite xenon lights being brighter than halogen ones, the visibility at night is still insufficient, making nighttime driving risky.
Therefore, he decided to try LED headlights, especially to experience the improved performance after the upgrade.
Before Upgrading
The image above shows the original HID headlight bulb. While it features a clear cutoff line to avoid dazzling oncoming traffic, its overall brightness falls short, making it inadequate for safe nighttime driving.
Additionally, the light beam pattern lacks uniformity and coverage, leaving certain areas dimly lit. This limited visibility can significantly increase the risk of accidents, especially in low-light conditions or on poorly lit roads.
After Upgrading
This is a specialized plug-n-play LED bulb designed for OEM HID replacement. After upgrading to NAOEVO HD5 LED headlight, the overall brightness is significantly enhanced, providing better road illumination and extending the lighting range.
Most importantly, it eliminates dark spots, greatly improving the comfort of night driving.
The image above shows the upgraded Volkswagen TiGuan with LED headlights. The installation is straightforward, utilizing a direct plug-in design compatible with the xenon ballast interface.
Top Considerations For HID Headlight Bulb Upgrade
For car enthusiasts, upgrading headlights is about more than just improved safety, brightness, and focus.
Equally important are the ease of installation, maintaining the vehicle’s original functionality, and ensuring the upgrade is reversible.
A straightforward, plug-and-play installation is crucial, allowing anyone to complete the process without professional assistance.
Additionally, the upgrade should not interfere with the car’s original systems or features, and it should provide an option to restore the vehicle to its original state in case the new setup doesn’t meet expectations or circumstances change.
The NAOEVO HD5 LED headlights excel in these aspects. The upgrade process eliminates the need to modify the xenon ballast or wiring.
Simply install the bulb and connect it directly to the car’s original power supply, ensuring a seamless and hassle-free upgrade while preserving the car’s original design and functionality.
With the NAOEVO plug-and-play HD5 LED headlights, there’s no need for major modifications to your car.
Previously, upgrading to LED headlights required bypassing the xenon ballast (by removing it) and reconnecting the power supply, as the original car power connection was incompatible with LED lights.
This innovation represents a significant leap forward in headlight upgrades.
For car owners with original xenon headlights, this is great news—no more dismantling or complex rewiring. Now, upgrading your headlights is as simple as replacing the bulbs, making the process faster, easier, and hassle-free.
NAOEVO D Series LED Headlights For Your HID Replacement
Requires Additional Adapter Wiring:
1. NAOEVO D1 Plus LED Headlight
Specification
Power: 40W/Bulb 80W/Set
Lumen: 4000LM/Bulb 8000LM/Set
Voltage: 9-16V
Chip: 3*75MIL
Current: 2.5A
Color: 6500K
Lifespan: 50,000 Hours
Warranty: 1 Year
OEM Replace: D1S, D1R, D3S, D3R
Installation: Need Manual Installation
Equipped with advanced 75MIL*3 large flip chips, the NAOEVO D1 Plus LED headlight conversion kits deliver an impressive 80W and 8000LM per set (40W 4000LM per bulb), offering ultra-high brightness that enhances road visibility and ensures safer night driving.
The D1 Plus features a 1.5mm ultra-slim copper substrate, significantly thinner than standard options available on the market. This design places the LED chips closer to the original bulb’s light source, producing a brighter and more focused beam for superior performance compared to stock bulbs.
For efficient heat dissipation, the D1 Plus utilizes a copper heat pipe capable of transferring 10W of heat at a time. Combined with an 8500 RPM high-speed silent fan and a large aluminum surface, these headlights maintain an advanced cooling system for long-lasting and reliable operation.
The D1 LED headlight kit package includes extra 2 adapter wires in order to apply different vehicle plugs and make the LED under a normal use. If they are not plug and play, you can use that to connect to the vehicle factory plug. Find the 2 wires positive and negative of original power plug and connect them.
2. NAOEVO D2 Plus LED Headlight
Specification
Power: 50W/Bulb 100W/Set
Lumen: 6000LM/Bulb 12000LM/Set
Voltage: 9-16V
Chip: 3*75MIL
Current: 2.5A
Color: 6500K
Lifespan: 50,000 Hours
Warranty: 1 Year
OEM Replace: D2S, D2R, D4S, D4R
Installation: Need Manual Installation
The ability to see clearly and be aware of the potential road obstacles are the key point of driving experience. These NAOEVO D2 Plus LED bulbs produce 100W 12000LM per set (50W 6000LM per bulb) super high brightness. Definitely light up your dark road, when you drive with these D2 Plus bulbs, you will see farther, react sooner and be safer.
Light beam pattern is as important as brightness. Some LED bulbs on the market offer high output but scattered light. To solve this problem, we use an advanced flip chip and perfect beam angle design. D2 Plus LED headlight kits produce a clear cut-off line and focus beam pattern without any dark area.
D2 Plus LED bulb achieves better heat dissipation. An advanced copper heat pipe can transfer 10W heat each time. The 8500RPM high-speed mute fan and the large area of aluminum heat sink stay 30% cooler than standard bulbs. Besides, the built-in thermistor protects the bulb from overheating. D2 Plus LED light bulb has a long lifespan of over 50,000 hours.
The D2 Plus LED headlight kit package also includes extra 2 adapter wires in order to apply different vehicle plugs and make the LED under a normal use.

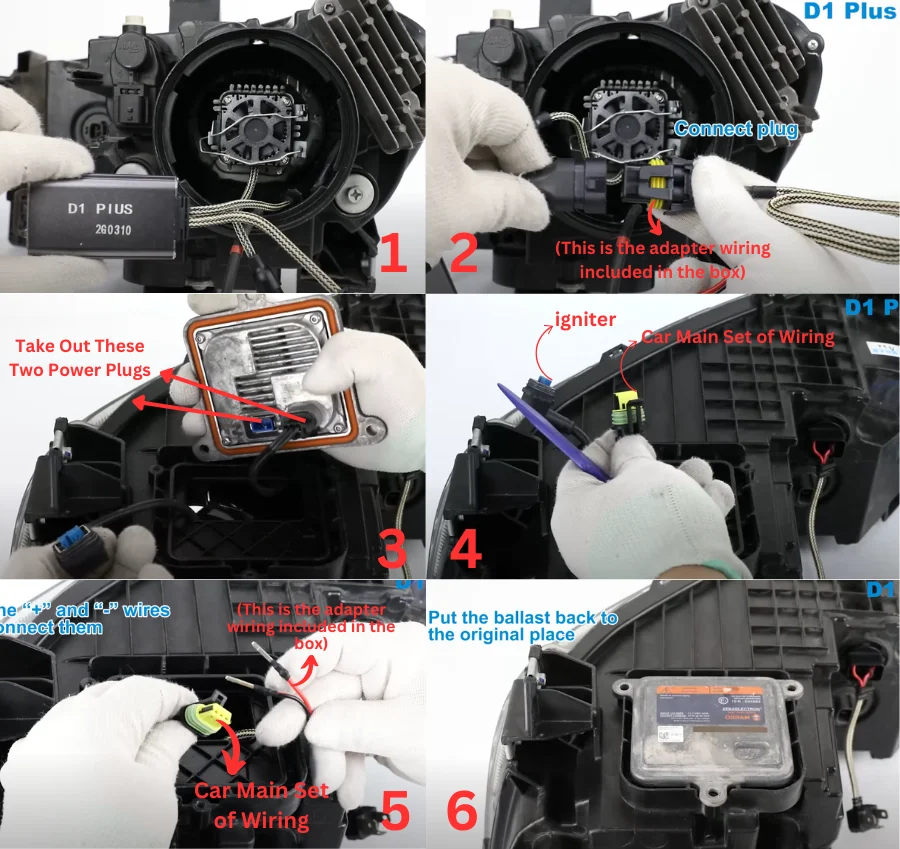

Step-By-Step Guide: How To Install D1 Plus/D2 Plus
Direct Plug And Play Installation Solution:
D1 Pro LED Headlight
Power: 9000LM(Pair)
Replace For: D1S, D1R, D3S, D3R
Warranty: 2 Years
Installation: Plug-N-Play
D3 Pro LED Headlight
Power: 9000LM(Pair)
Replace For: D1S, D1R, D3S, D3R
Warranty: 2 Years
Installation: Plug-N-Play
D5 Pro LED Headlight
Power: 9000LM(Pair)
Replace For: D5S
Warranty: 2 Years
Installation: Plug-N-Play
The NAOEVO D1Pro, D3Pro, and D5Pro LED headlight bulbs are designed as direct plug-and-play replacements for your original HID headlights.
Featuring a 1:1 holder and socket that matches your existing HID lamps, these bulbs eliminate the need for any complex wiring modifications or additional adapters.
Simply remove the original HID bulbs and replace them with NAOEVO’s LED headlight bulb, ensuring a seamless and hassle-free installation.
This straightforward upgrade saves time and effort while delivering superior performance and enhanced visibility without the need for cutting or altering your vehicle’s wiring system.

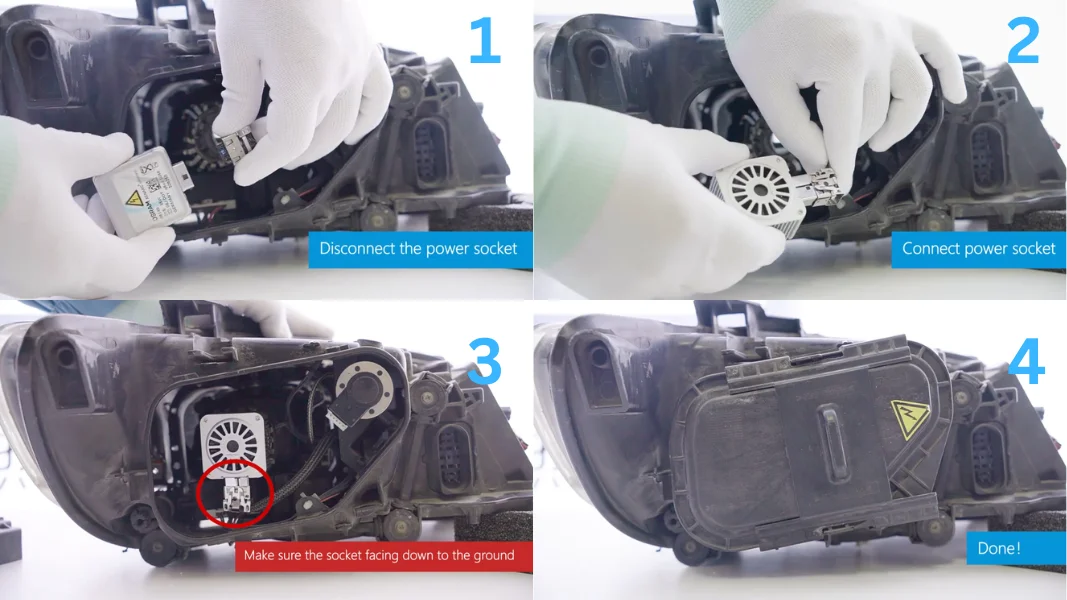

How To Replace Original HID With NAOEVO D1Pro/D3Pro/D5Pro
Q1: Destructive vs. Non-Destructive Replacement: Which Is Best For My Car?
Above you can see that we provide D series LED headlight bulbs that can be clarify as non-destructive and destructive installation.
You may be confused that since plug-and-play installation is easy, why some people still choose LED headlight bulbs with complex installation?
Q2: When to Choose In-Line Non-Destructive Installation LED Headlight Bulb?
If you’re looking for a hassle-free installation of LED headlight bulbs as a replacement for your HID system, choosing a plug-and-play D-series LED bulb is an excellent option.
For instance, many of our European customers prefer these plug-and-play LED bulbs for their HID replacements due to their easy installation.
However, for older vehicle models, using these LED headlight bulbs may result in Canbus compatibility issues.
Q3: When to Choose Destructive Installation LED Headlight Bulb?
Destructive installation LED headlight bulbs require modifications to the wiring, which can make the installation process more complex for some customers.
However, they offer the advantage of resolving Canbus compatibility issues, especially for vehicles with older models or original bulbs.
For example, many of our South American customers prefer choosing LED bulbs with destructive installation for their HID replacements, as it helps address these issues.
NAOEVO: Your Reliable Source for Plug-and-Play LED Car Lights
NAOEVO provides LED headlights designed with specific xenon interfaces. If your vehicle uses xenon lamps like D1S, D2S, D3S, D4S, or D5S, specialized LED headlights are available to match each of these interfaces.
A renowned high-tech enterprise, NAOEVO has 19 years of experience in automotive lighting R&D. With 118 patents worldwide, the company offers a diverse range of products that are highly sought after both domestically and internationally.
CONCLUSION
In conclusion, upgrading from HID to LED headlights is a practical choice for those seeking improved brightness, energy efficiency, and longer lifespan. While compatibility and installation may require some attention, the benefits of enhanced road visibility and safety make the switch worthwhile.
NAOEVO LED headlights offer a reliable and easy upgrade solution, ensuring optimal performance for your vehicle.
