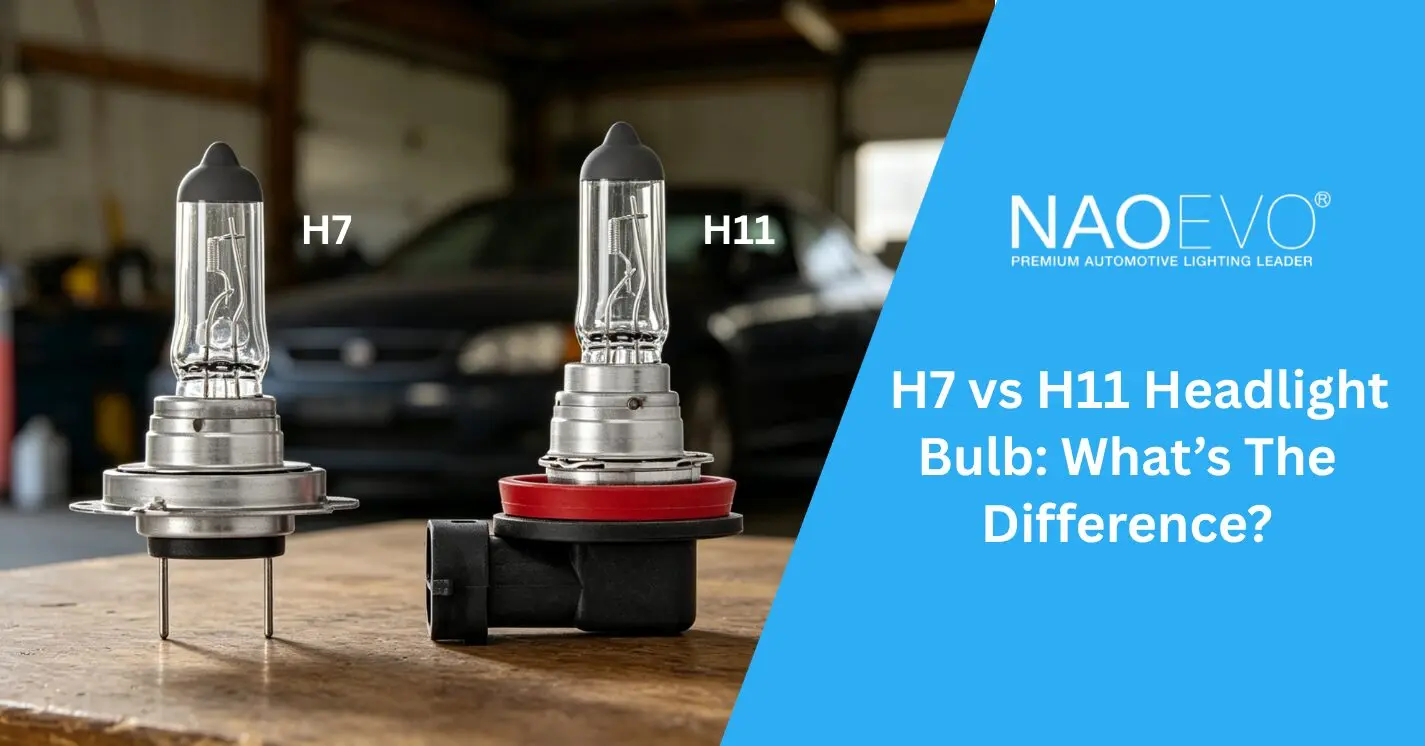

H7 vs H11 Headlight Bulbs: Key Differences Explained

When upgrading or replacing your vehicle’s headlight bulbs, many drivers struggle to tell apart H7 and H11 bulbs. The core difference is their base socket structure, beam purpose, light output and and vehicle applications.

H7, mainly used for high beam and low beam on European vehicles with higher brightness; H11 comes with a sealed connector, mostly applied to fog lights and low beam on Japanese and North American cars. Most importantly, their sockets are not universal, so they cannot be interchanged for direct replacement.

In this guide, we’ll compare H7 vs H11 bulbs in terms of base design, compatibility, brightness, and beam pattern, helping you find the best option for safer and more efficient driving.

H7 vs H11 Headlight Bulbs: Main Differences Compared

Both H7 and H11 bulbs are halogen-based with the same 55W wattage, but they differ in base design, function, brightness, and vehicle compatibility.

	H7 Bulb	H11 Bulb
Base Type	PX26d (2 exposed pins)	PGJ19-2 (enclosed connector)
Common Use	Hi/Lo Beam	Low beam; Fog light
Beam Type	Single beam	Single beam
Wattage (Typical)	55W	55W
Lumen Output	1500-1600LM	1250-1350LM
Lifespan	400 to 1,000 hours	500 to 800 hours
Bulb Size	14.5mm*55mm	20.8mm*67.5mm
Color Temp	4300K	3000K(Fog) 6000K(Low beam)
Vehicle Fitment	European/Asian vehicles	Japanese/North American vehicles
Installation	May require retainer rings, adaptors, or clips to secure	Plug-n-play

H7 vs H11: Different Base Structures

The most obvious difference between H7 and H11 bulbs is the connector design:

👉 H7 uses a PX26d base, featuring two symmetrical metal clips that look like rabbit ears.

👉 H11 uses a PGJ19-2 base, with a single-sided plastic locking tab that looks more like a hook.

Because of these physical differences, the two bulb types are not interchangeable. If you try to install the wrong one, the connector will not even fit into the socket.

H7 vs H11: Different Optical Performance

These two bulbs also offer different optical performance:

👉 H7 bulbs can be used in bothreflector and projector headlights, depending on the vehicle design.

👉 H11 bulbs are more often used in projector headlights.

Because of their different optical designs, H7 bulbs are often chosen for drivers who want brighter long-distance visibility, while H11 bulbs are commonly preferred for comfortable daily driving and fog-light applications.

H7 vs H11: Different Optical Performance

H7 and H11 bulbs produce different levels of brightness and beam performance. In general, original H7 bulbs are slightly brighter than H11 bulbs.

👉 H7 bulbs usually deliver around 1500-1600 lumens, providing stronger illumination for better road visibility.

👉 H11 bulbs typically produce around 1250-1350 lumensper bulb, offering a softer and more focused beam pattern.

H7 vs H11: Different Beam Pattern

H7 and H11 bulbs are designed for different headlight functions in vehicles.

👉 H7 bulbs are mainly used for high beam and low beam, suitable for open-road driving, particularly on rural roads and highways.

👉 H11 bulbs are commonly used for fog lights and low beamheadlights, ideal for fog, rain, and city driving where precise beam control is essential.

Since these bulbs serve different purposes, choosing the correct type depends on your vehicle’s original headlight design and lighting requirements.

H7 vs H11: Different Vehicle Applications

Different automotive manufacturers prefer different bulb types based on their headlight system designs.

👉 European/Asian vehicles: Around 80% use H7 bulbs because traditional reflector-style headlights are more common in European & Asian car designs.

👉 Japanese vehicles: Around 70% use H11 bulbs, which better fit the modular structure of projector headlights widely used in Japanese cars.

H7 vs H11: Different Installation

👉 H7 LED headlight bulbs may require additional retainer rings, adaptors, or metal clips to secure the bulb properly inside the headlight housing.

👉 H11 bulbs are generally easier to install because they feature a plug-and- play design.

However, the most important factor is your vehicle’s original bulb specification. Different vehicles are designed for specific bulb types, so you should always select the correct model according to your car’s headlight requirements.

💡 Read More: How To Install H7 Headlight Bulb

H7 vs H11: Cost

H7 and H11 bulbs are generally similar in price, but H7 bulbs are often slightly more expensive because they are commonly used for higher-performance headlight applications. The final cost also depends on the bulb type, brand, and technology.

Typical market prices:

Standard halogen H7 bulbs: around $5–$15 per bulb
Standard halogen H11 bulbs: around $5- $12 per bulb

For LED upgrades:

H7 LED headlight bulbs: around $30–$120 per pair
H11 LED headlight bulbs: around $25–$100 per pair

Premium LED versions with features like CANBUS decoding, higher brightness, and better cooling systems may cost more. However, when choosing between H7 and H11 bulbs, compatibility with your vehicle is more important than price alone.

Can You Use H7 Instead of H11?

No, H7 and H11 bulbs are not interchangeable. Although they may look similar, they use different socket designs, locking mechanisms, and electrical structures. This means an H7 bulb cannot directly fit into an H11 socket, and vice versa.

In addition, the correct bulb model depends on your vehicle’s original headlight specification. Different vehicles use different bulb types for their headlight systems, so choosing the right bulb should always be based on your car’s requirements rather than personal preference.

Before replacing or upgrading your headlights, it is recommended to check your owner’s manual or confirm the compatible bulb type for your specific vehicle model.

Which Is Better: H7 or H11?

There is no absolute “better” choice between H7 and H11 bulbs, as each type is designed for different vehicle systems and lighting requirements. The right option depends on your vehicle’s headlight design and your driving needs.

When comparing the two, several factors should be considered:

👉 Brightness: H7 bulbs are generally slightly brighter, offering stronger overall illumination, while H11 bulbs provide a more controlled light output.

👉 Beam focus: H11 bulbs usually produce a more focused and precise beam pattern, while H7 bulbs offer wider light coverage.

👉 Ease of installation: H11 bulbs are often easier to install due to their plug-and-play design, while H7 installations may require additional adapters or clips.

👉 Driving environment: H7 is more suitable for long-distance and open-road driving, while H11 performs better in city driving and foggy or low-visibility conditions.

However, the best choice is not about which bulb is superior, but which one is correctly matched to your vehicle and driving conditions.

Final Words

In the H7 vs H11 comparison, the main differences are the base design, installation method, and headlight application. H7 bulbs are commonly used for stronger forward visibility and can fit both reflector and projector headlights, while H11 bulbs are often used in projector headlights and fog lights for smoother beam performance. Choosing between H7 and H11 depends on your vehicle’s original bulb type and lighting needs.
